Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Power Distribution_BCM
>>
F17, F27, F35, F36, F64
F17, F27, F35, F36, F64

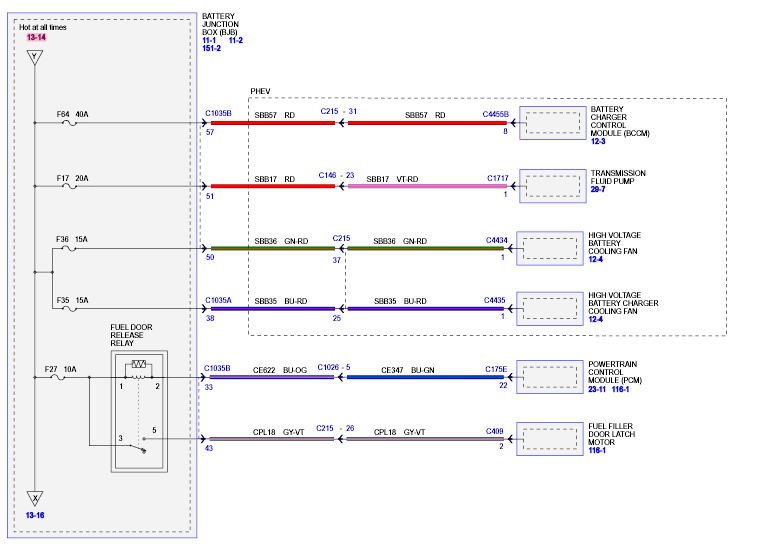

Fig 1: BCM Power Distribution Wiring Diagram - F17, F27, F35, F36, F64
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
