Power Distribution_BCM
>>
F17, F25, F26, F27, F29, F30
F17, F25, F26, F27, F29, F30

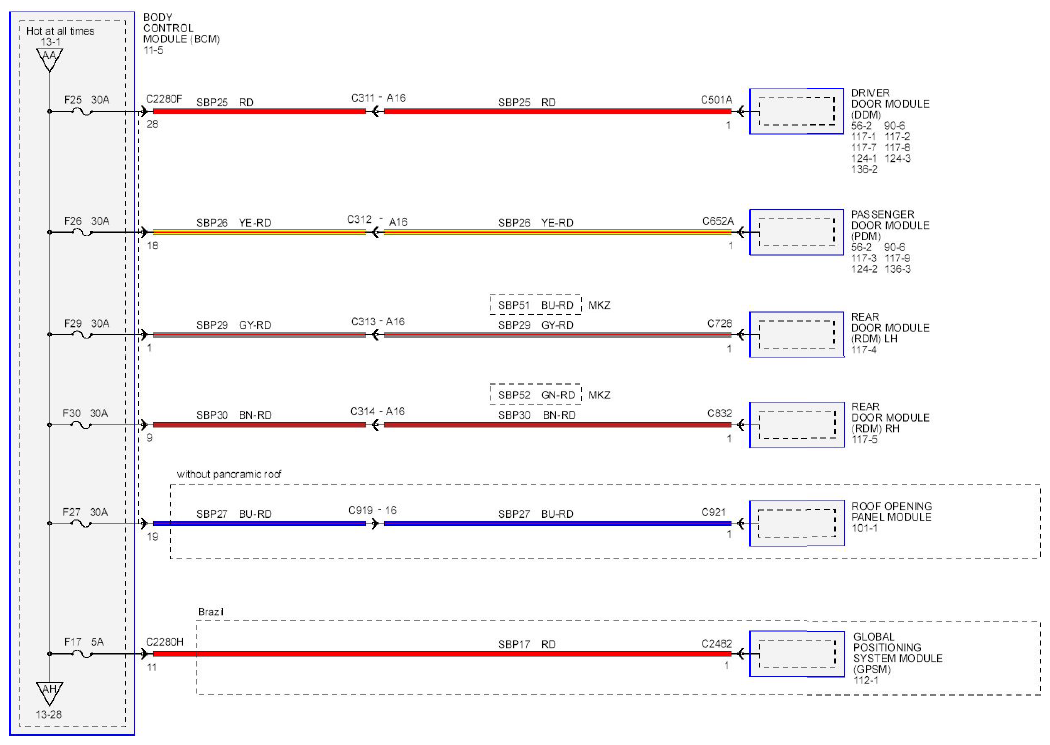

Fig 1: BCM Power Distribution Wiring Diagram - F17, F25, F26, F27, F29, F30
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
