Parking Rear and License Lamps: MKZ

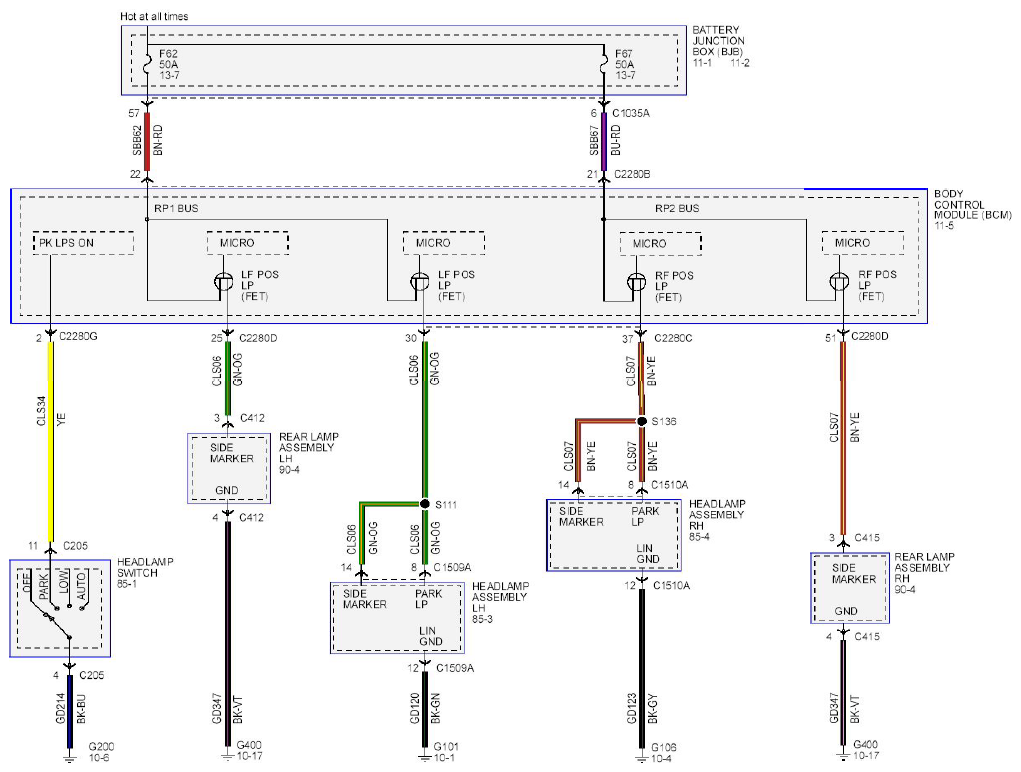

Fig 1: Parking Rear And License Lamps Wiring Diagram - MKZ (1 Of 2)
G08754213Courtesy of FORD MOTOR CO.

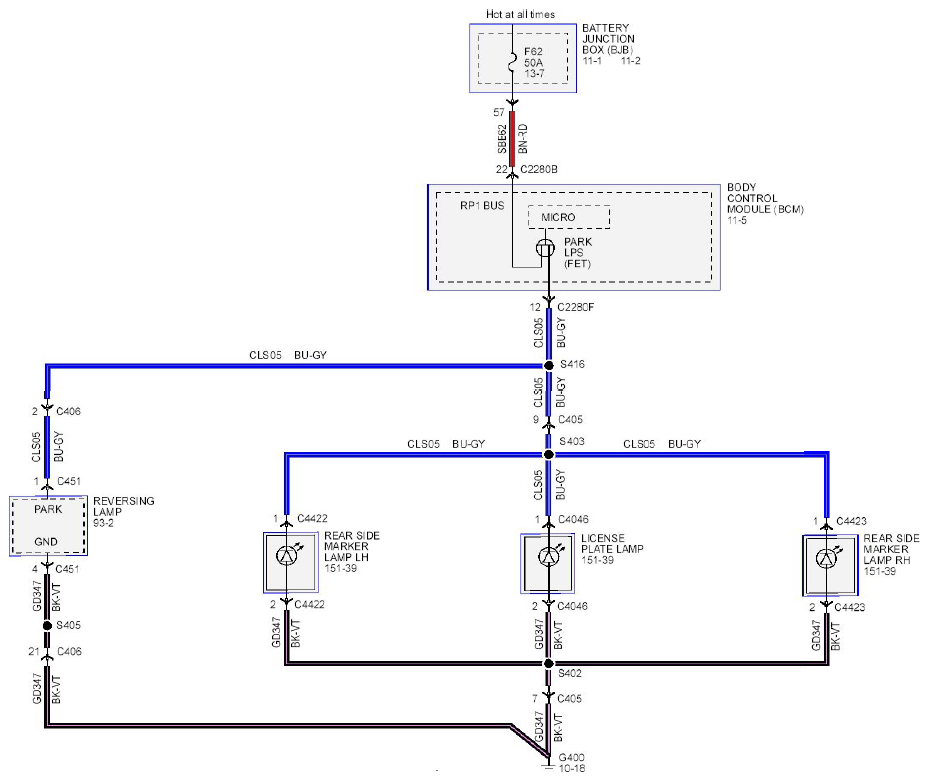

Fig 2: Parking Rear And License Lamps Wiring Diagram - MKZ (2 Of 2)
G08754215Courtesy of FORD MOTOR CO.
