Parking Rear and License Lamps: Fusion

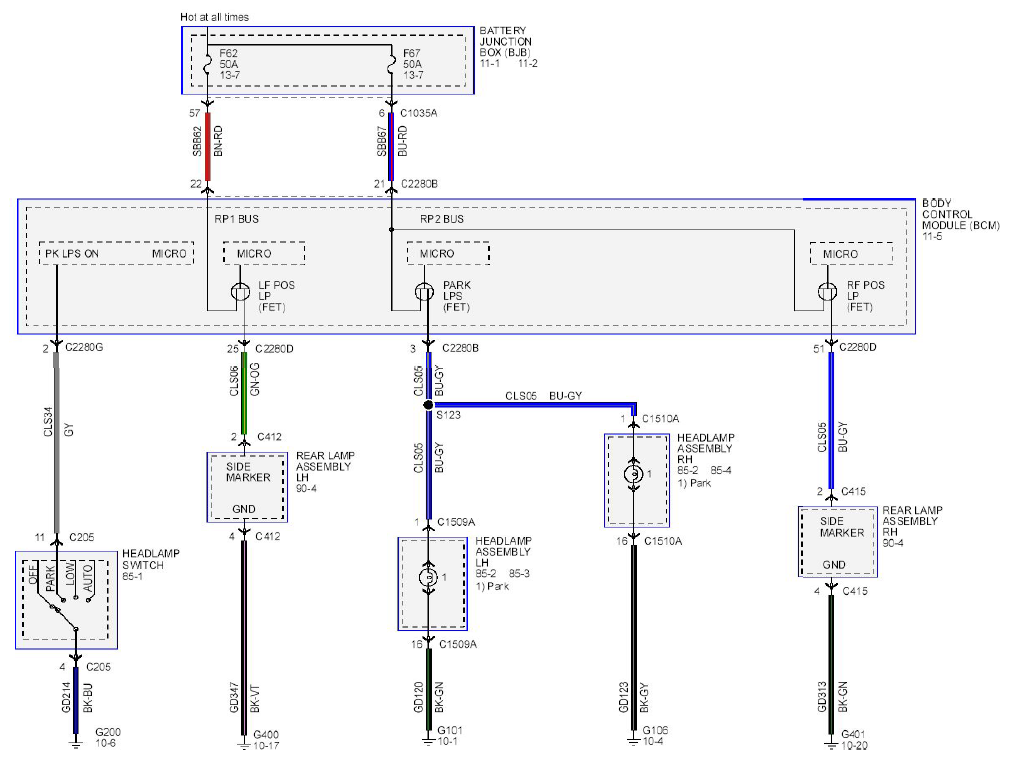

Fig 1: Parking Rear And License Lamps Wiring Diagram - Fusion (1 Of 2)
G08754212Courtesy of FORD MOTOR CO.
Fig 2: Parking Rear And License Lamps Wiring Diagram - Fusion (2 Of 2)
G08754214Courtesy of FORD MOTOR CO.
