Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Parking Aid
>>
Rear Video Camera MKZ/Mid - Fusion With Touch Screen Display
Rear Video Camera MKZ/Mid - Fusion With Touch Screen Display

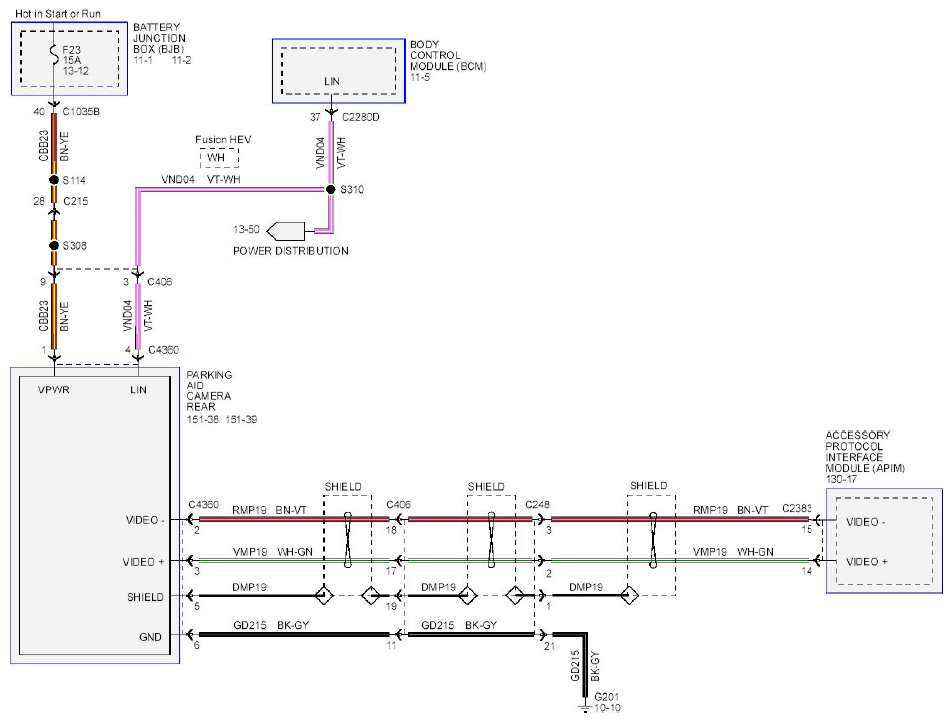

Fig 1: Parking Aid Wiring Diagram - Rear Video Camera MKZ/MID (Fusion With Touch Screen Display)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
