Rear Video Camera 4.2 Inch Display
Rear Video Camera 4.2 Inch Display

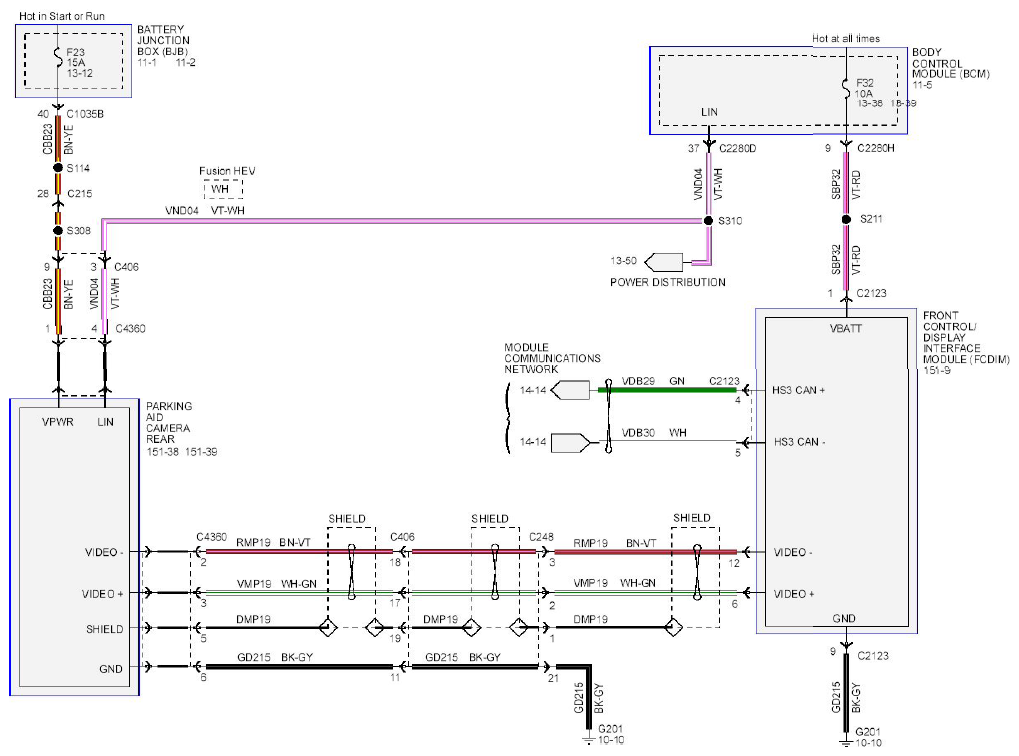

Fig 1: Parking Aid Wiring Diagram - Rear Video Camera 4.2 Inch Display
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
