Rear Parking Aid

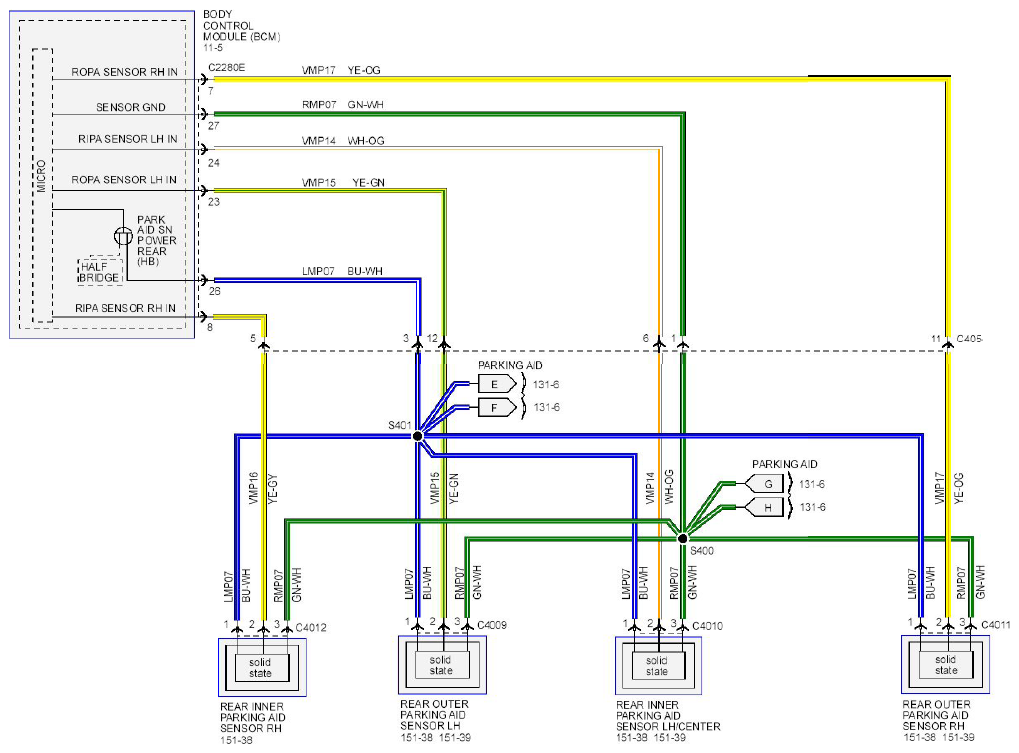

Fig 1: Parking Aid Wiring Diagram - Rear Parking Aid

G08754321

Courtesy of FORD MOTOR CO.
