Front Parking Aid Active Park Assist

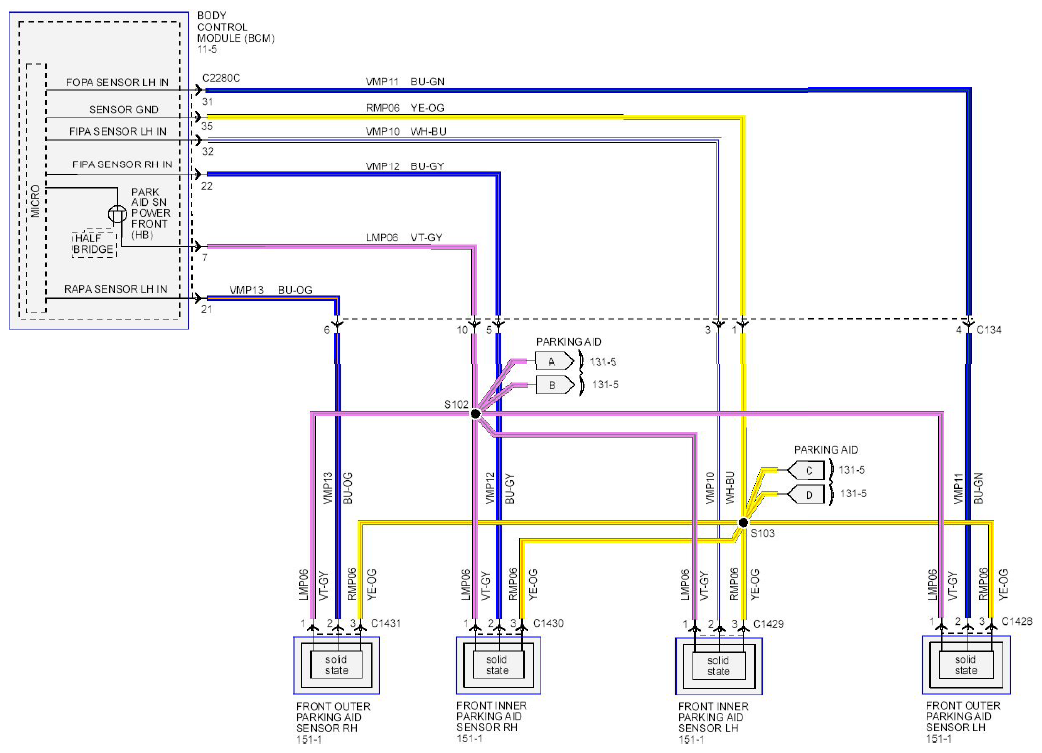

Fig 1: Parking Aid Wiring Diagram - Front Parking Aid Active Park Assist (1 Of 3)
G08754322Courtesy of FORD MOTOR CO.

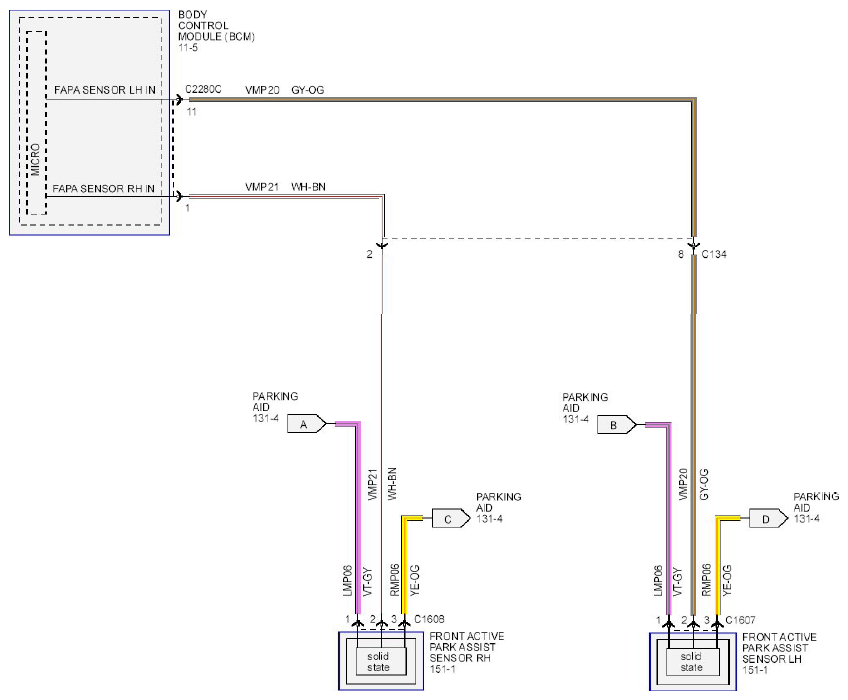

Fig 2: Parking Aid Wiring Diagram - Front Parking Aid Active Park Assist (2 Of 3)
G08754323Courtesy of FORD MOTOR CO.

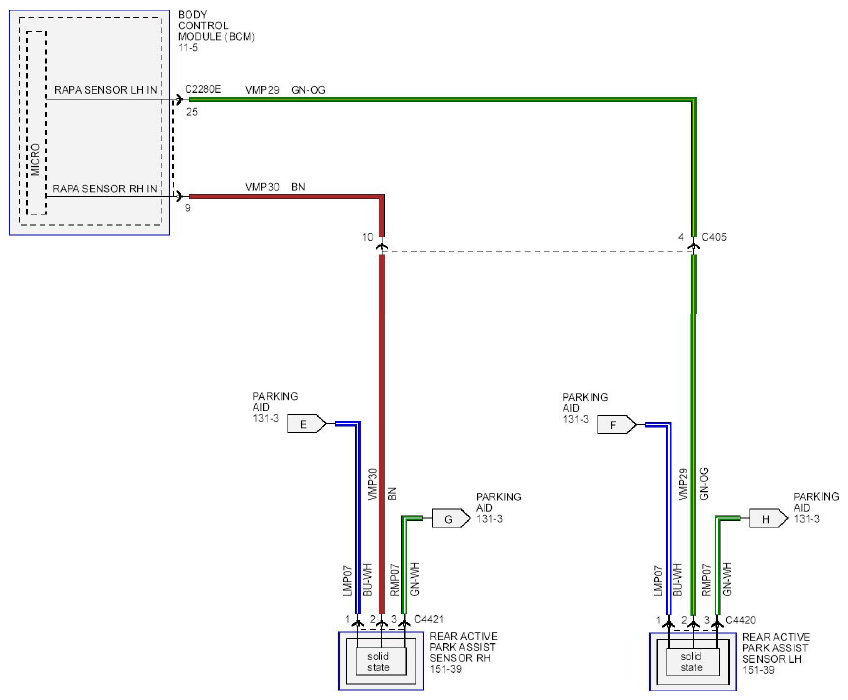

Fig 3: Parking Aid Wiring Diagram - Front Parking Aid Active Park Assist (3 Of 3)
G08754324Courtesy of FORD MOTOR CO.
