OEM Wiring Diagrams -- (Hybrid)
>>
Memory Seats
>>
MKZ
>>
10-Way Power Seat - Passenger
10-Way Power Seat - Passenger

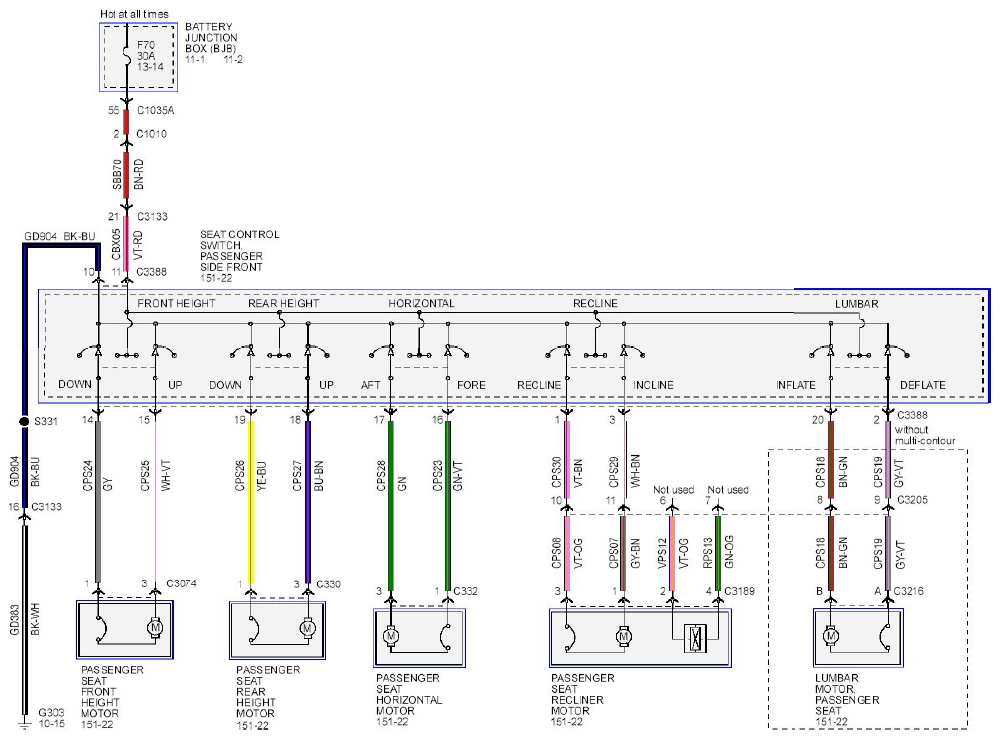

Fig 1: Memory Seats Wiring Diagram - MKZ 10-Way Power Seat, Passenger
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
