Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Luggage Compartment
>>
Power Luggage Compartment
Power Luggage Compartment

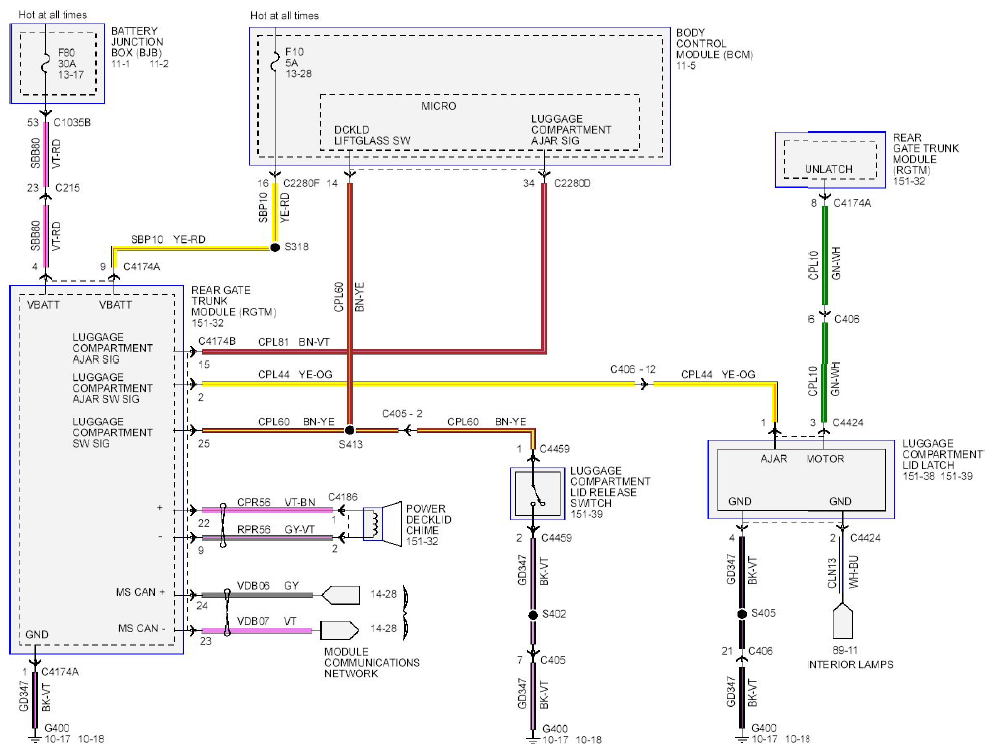

Fig 1: Power Luggage Compartment Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

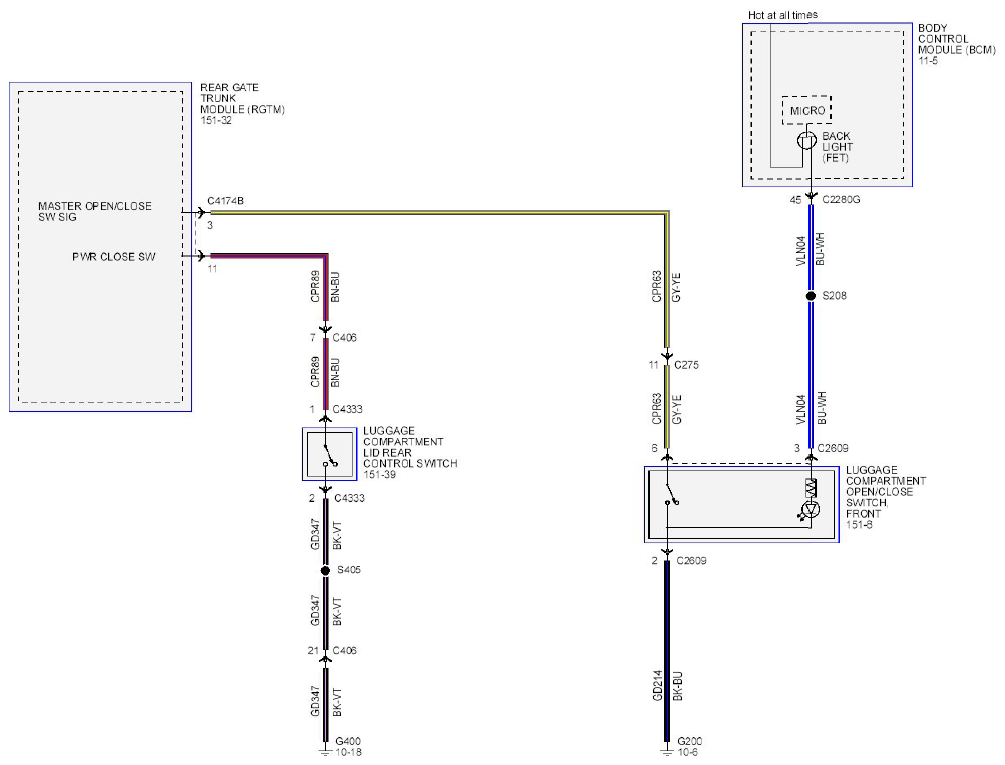

Fig 2: Power Luggage Compartment Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

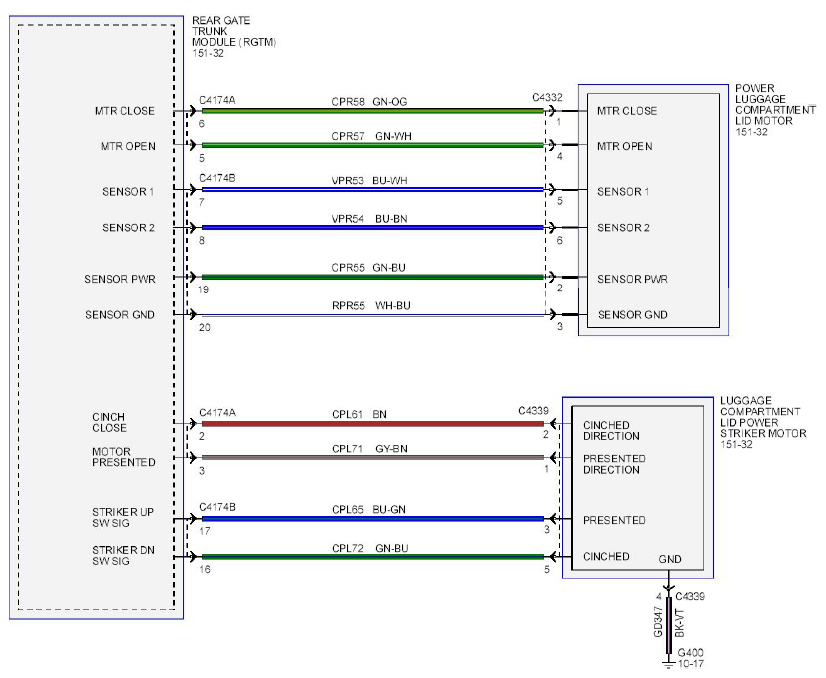

Fig 3: Power Luggage Compartment Wiring Diagram (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
