OEM Wiring Diagrams -- (Hybrid)
>>
Luggage Compartment
>>
Manual Luggage Compartment
Manual Luggage Compartment

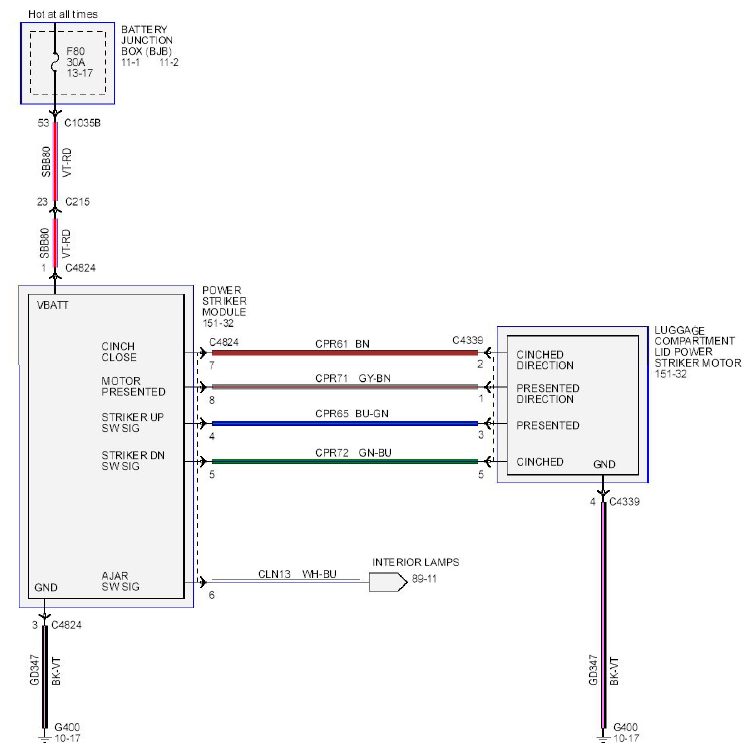

Fig 1: Manual Luggage Compartment Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

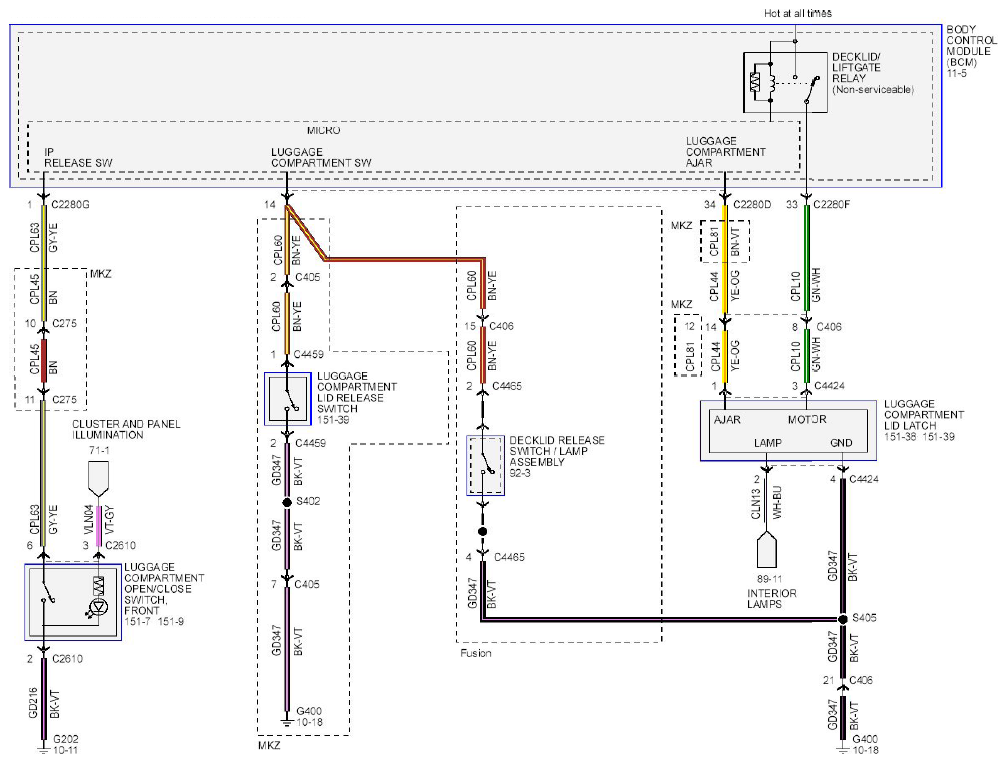

Fig 2: Manual Luggage Compartment Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
