Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Instrument Cluster
>>
Fusion
Instrument Cluster: Fusion
Fig 1: Instrument Cluster Wiring Diagram - Fusion (1 Of 2)
Courtesy of FORD MOTOR CO.

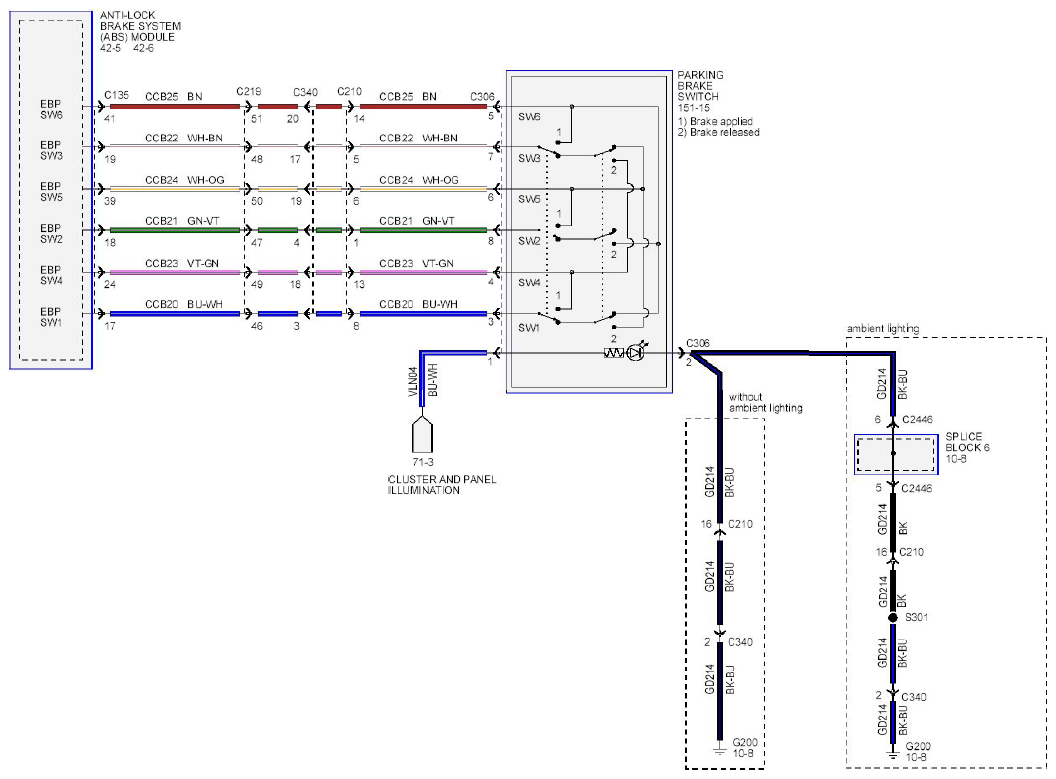

Fig 2: Instrument Cluster Wiring Diagram - Fusion (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
