OEM Wiring Diagrams -- (Hybrid)
>>
Horn_Cigar Lighter
>>
With 110V Power Inverter
With 110V Power Inverter

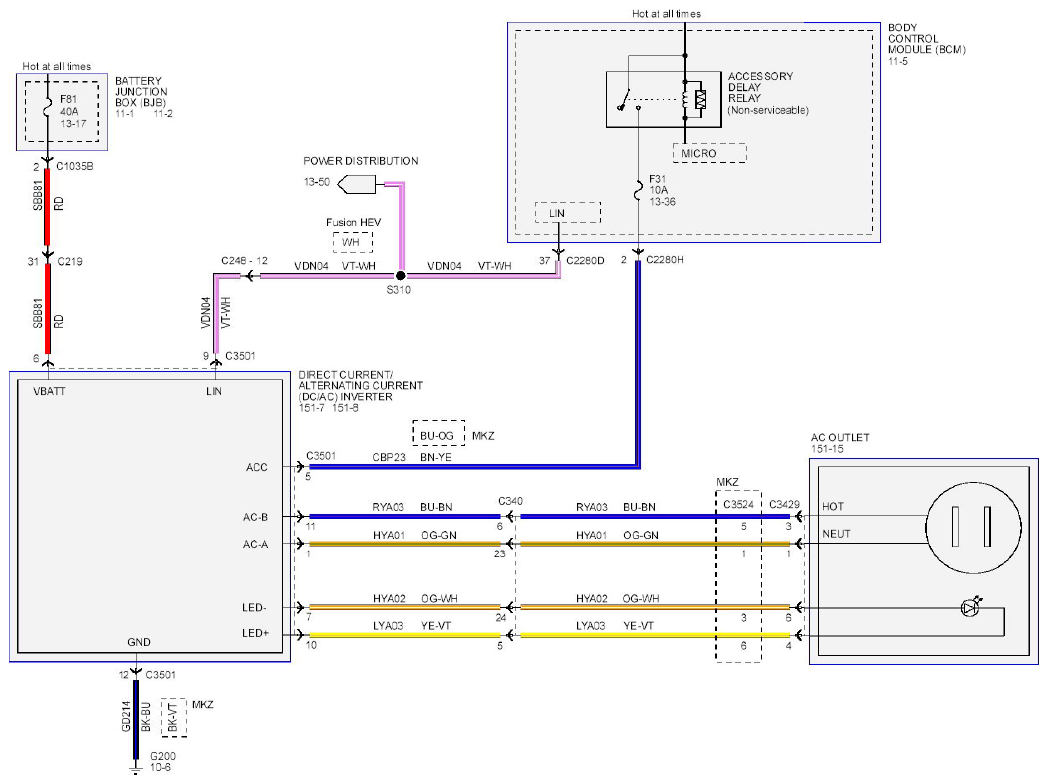

Fig 1: Horn / Cigar Lighter Wiring Diagram - With 110V Power Inverter
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
