OEM Wiring Diagrams -- (Hybrid): Headlamps_Autolamps: Notes

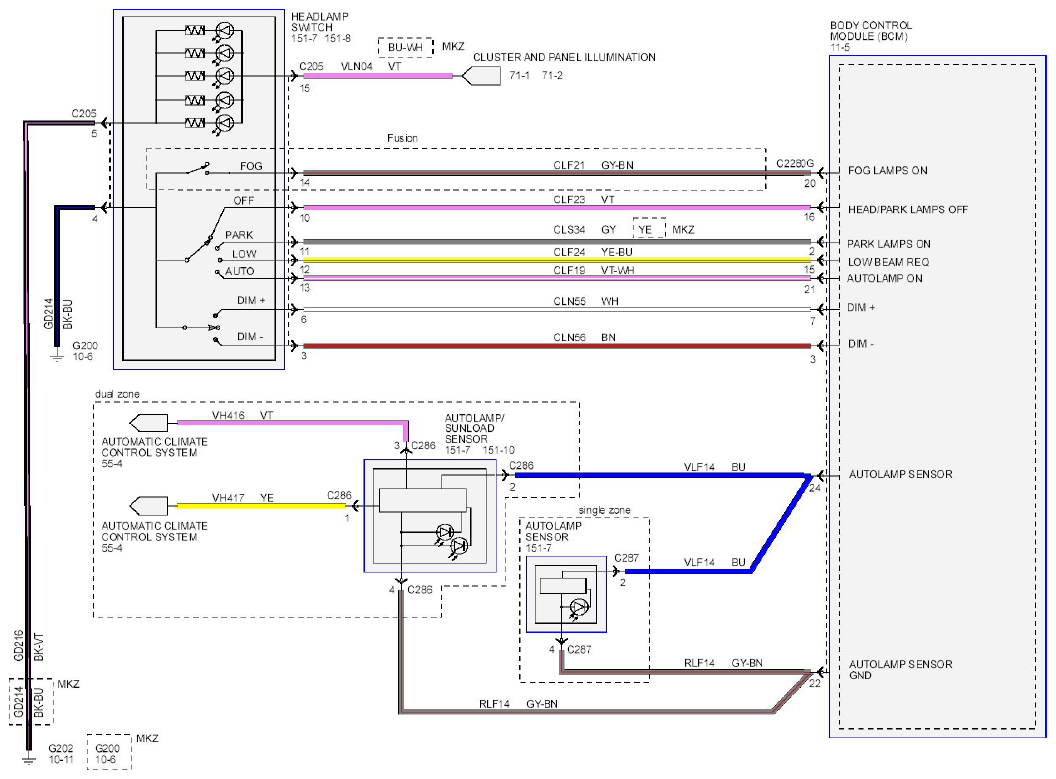

Fig 1: Headlamps / Autolamps Wiring Diagram

G08754189

Courtesy of FORD MOTOR CO.
