OEM Wiring Diagrams -- (Hybrid): Headlamps_Autolamps: Halogen

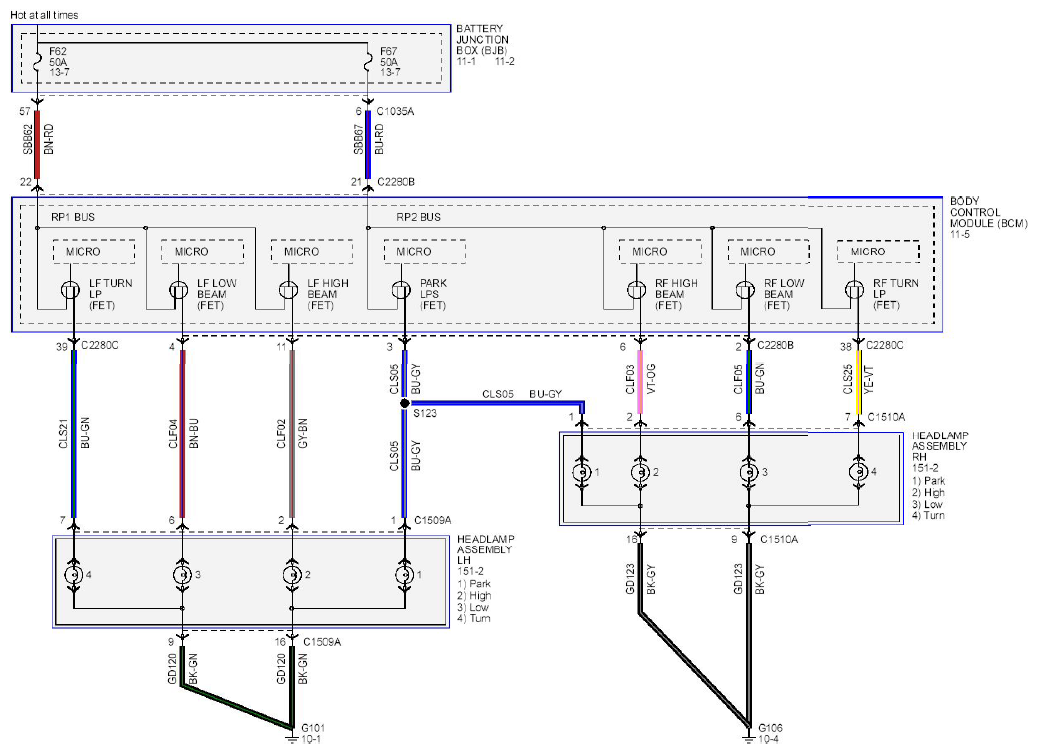

Fig 1: Headlamps / Autolamps Wiring Diagram - Halogen

G08754190

Courtesy of FORD MOTOR CO.
