Fog Lamps
Fog Lamps

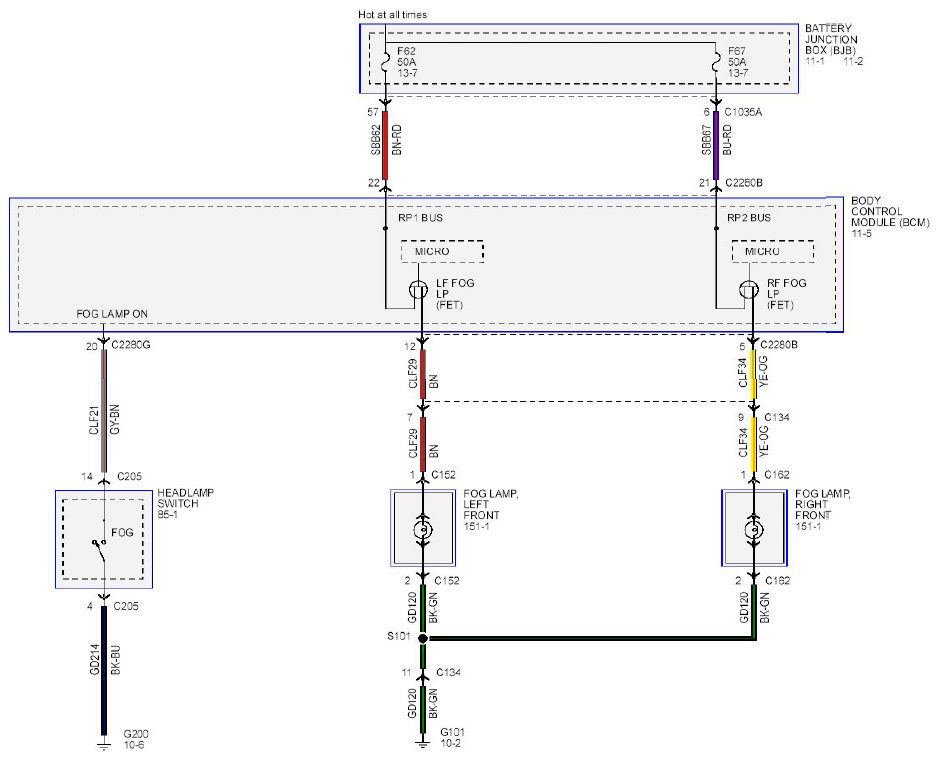

Fig 1: Fog Lamps Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
