MKZ Adaptive Cruise

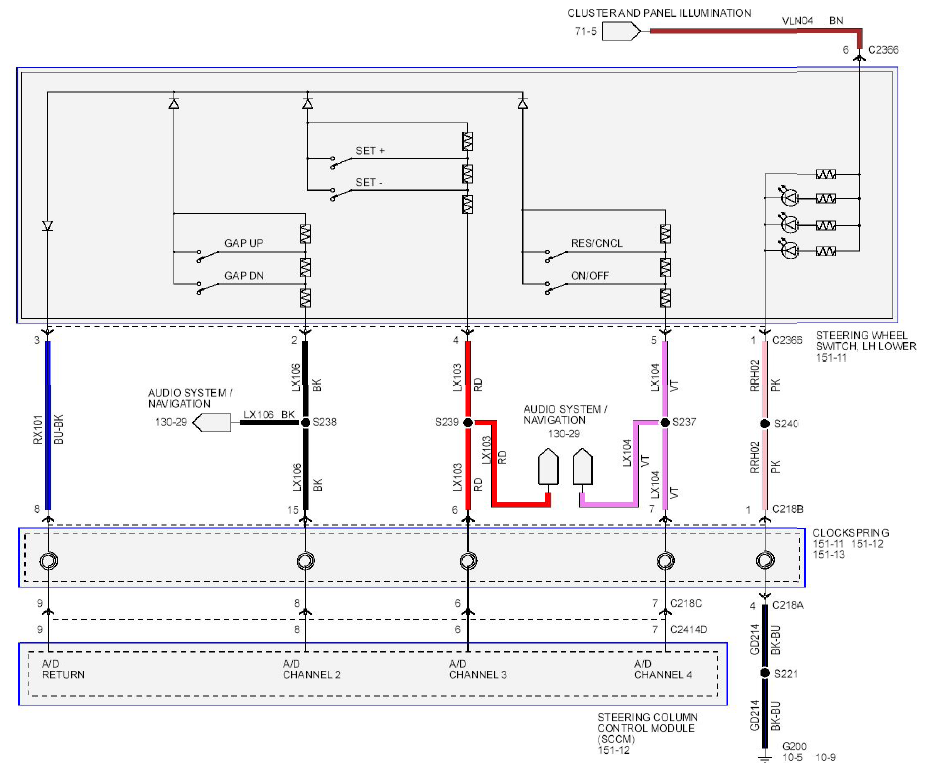

Fig 1: Cruise Control Wiring Diagram - MKZ, Adaptive Cruise
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
