Cluster and Panel Illumination: MKZ

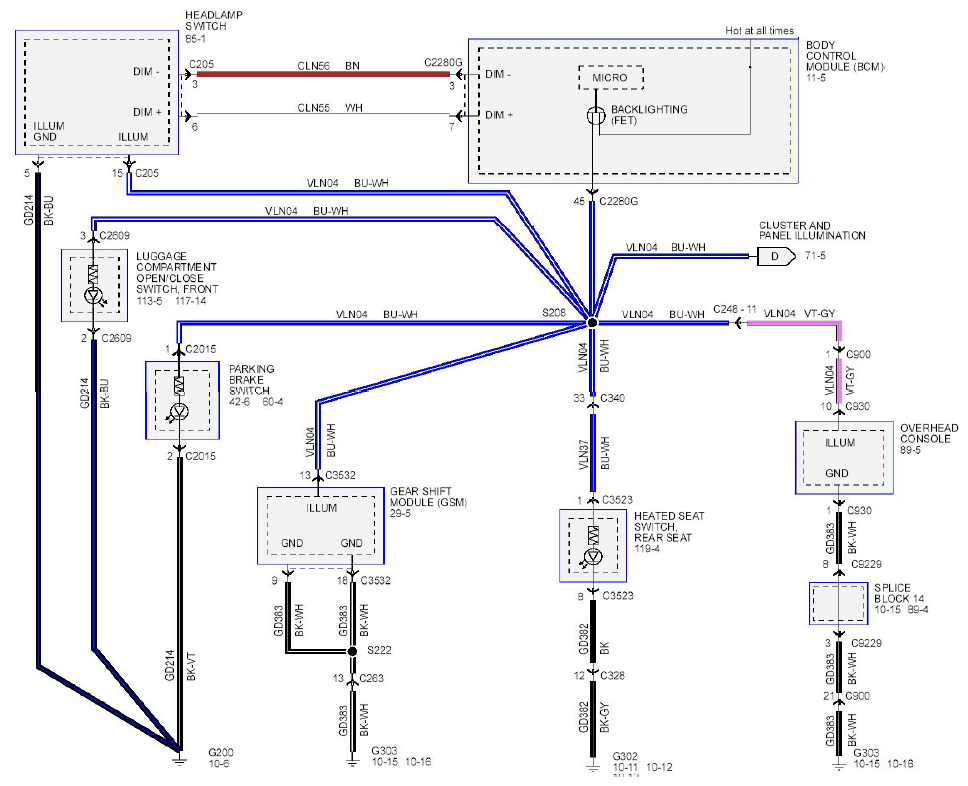

Fig 1: Cluster And Panel Illumination Wiring Diagram - MKZ (1 Of 2)
G08756329Courtesy of FORD MOTOR CO.

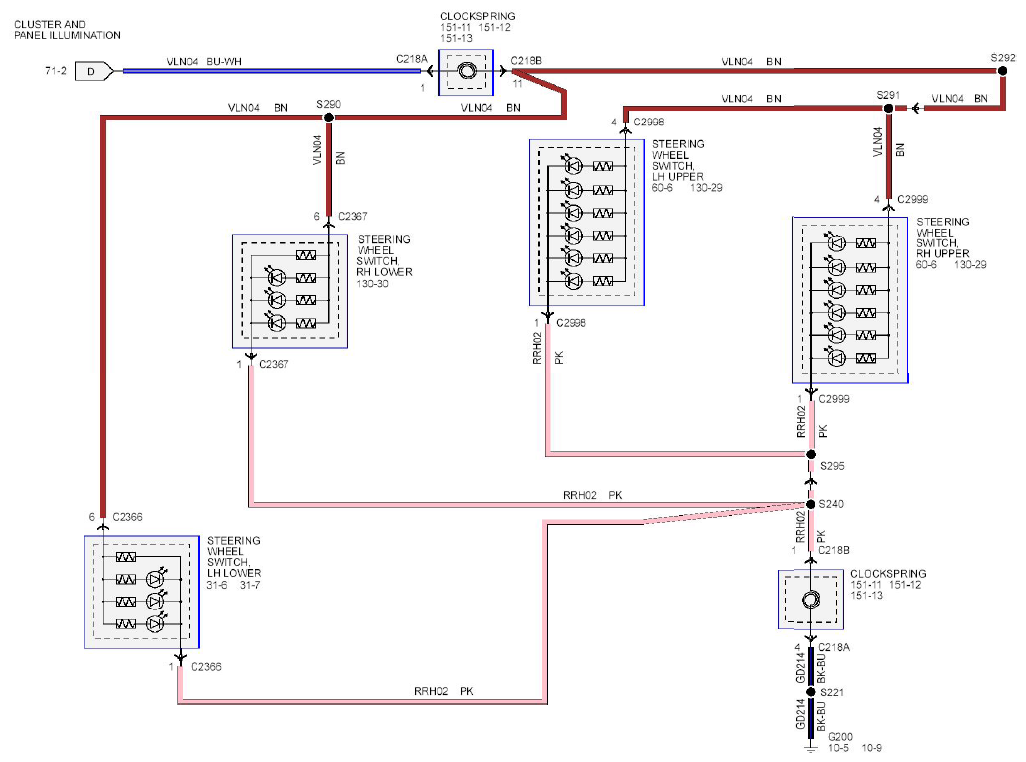

Fig 2: Cluster And Panel Illumination Wiring Diagram - MKZ (2 Of 2)
G08756332Courtesy of FORD MOTOR CO.
