Cluster and Panel Illumination: Fusion

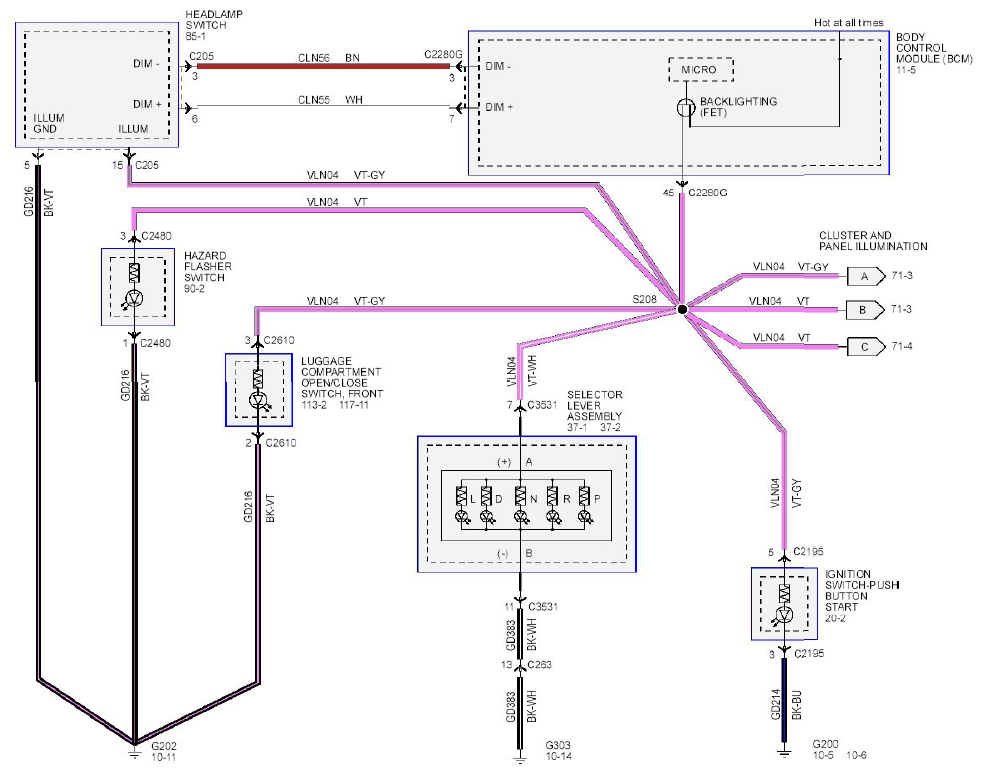

Fig 1: Cluster And Panel Illumination Wiring Diagram - Fusion (1 Of 3
G08756328Courtesy of FORD MOTOR CO.

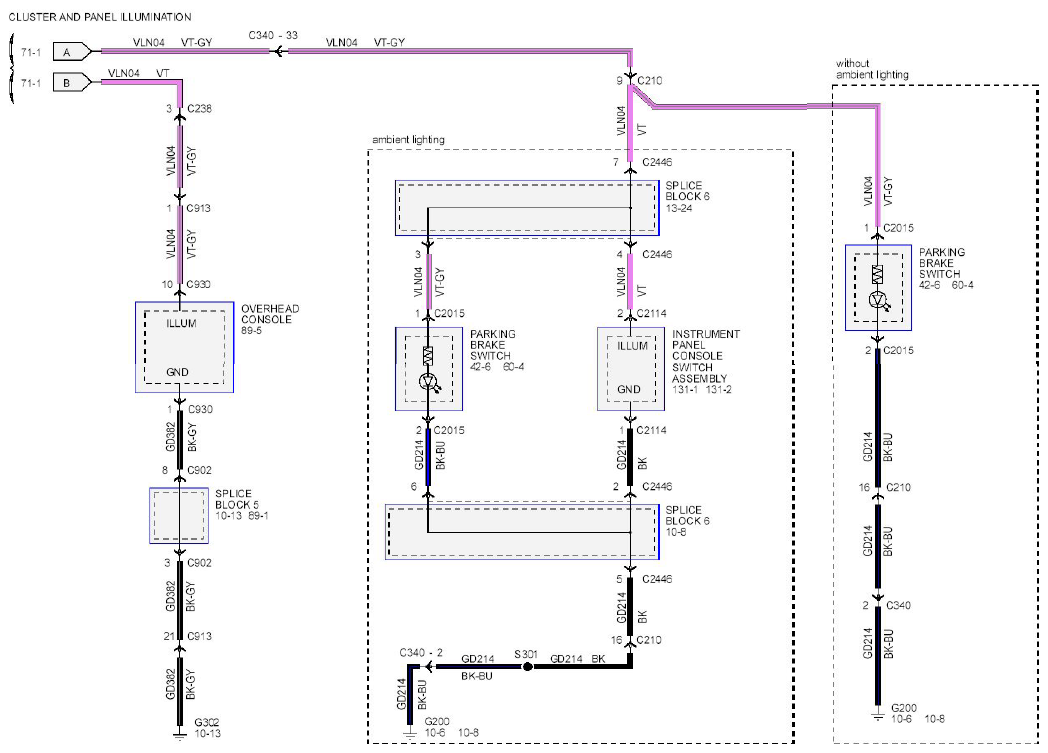

Fig 2: Cluster And Panel Illumination Wiring Diagram - Fusion (2 Of 3)
G08756330Courtesy of FORD MOTOR CO.

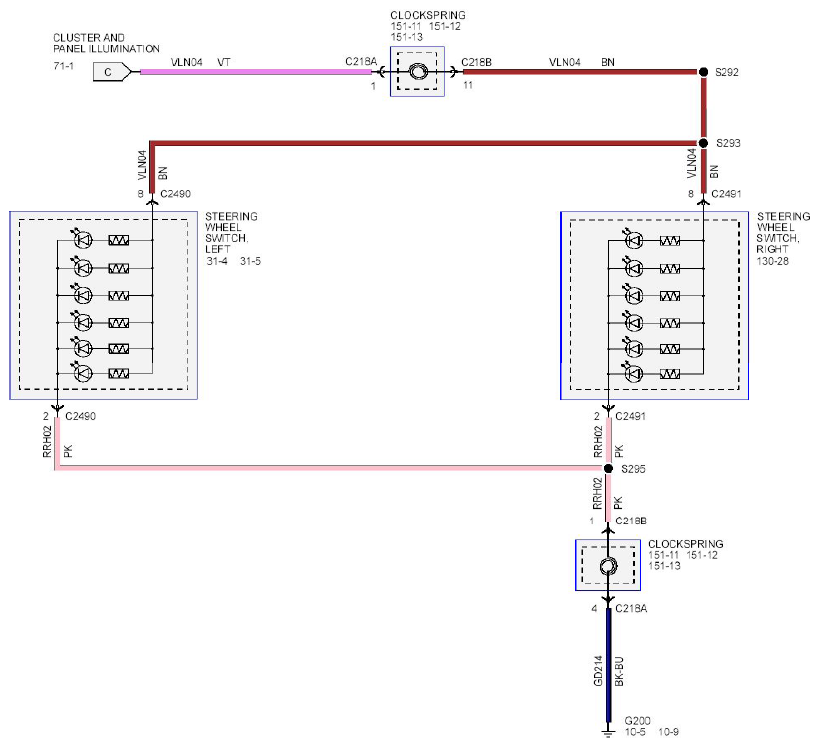

Fig 3: Cluster And Panel Illumination Wiring Diagram - Fusion (3 Of 3)
G08756331Courtesy of FORD MOTOR CO.
