All Wheel Drive (AWD)

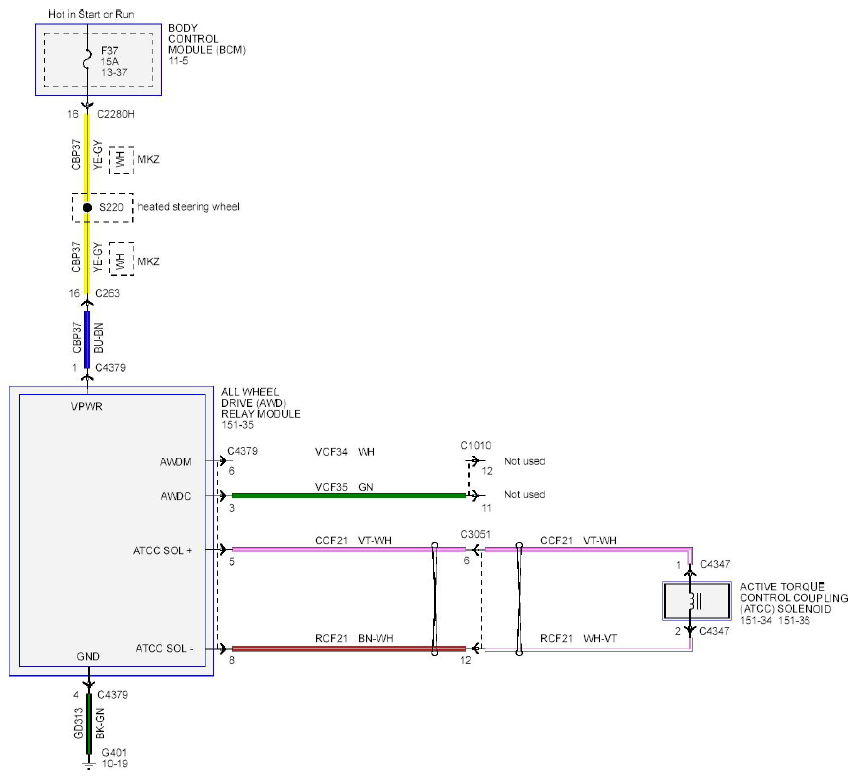

Fig 1: All Wheel Drive (AWD) Wiring Diagram

G08754152

Courtesy of FORD MOTOR CO.
