Brake Vacuum Pump: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: COOLING FAN MOTOR AND SHROUD .

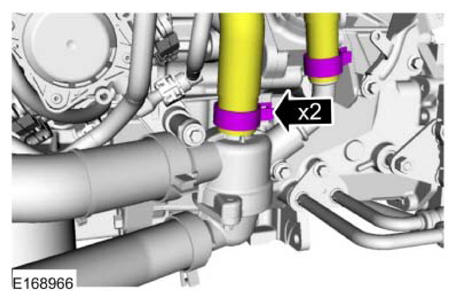

    G09055279
  3. Torque:  89 lb.in (10 Nm)

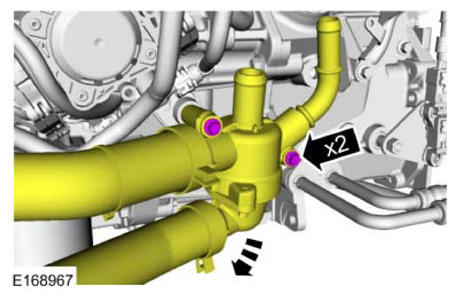

    G09055280
  4. G08408060
  5. Torque:  35 lb.ft (48 Nm)
    G08408061
  6. Use the General Equipment: Vise
    G08408062
