Trailing Arm: Installation

NOTE: Fabricate a spacer.

NOTE: Focus, Focus-BEV and Focus-ST require different length spacers.
1. Focus, Focus-BEV.
2. Focus-ST.

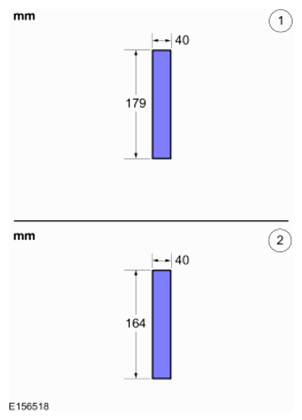

Fig 1: Spacers Different Length Dimension
Courtesy of FORD MOTOR CO.
General Equipment : Transmission Jack

Fig 2: Checking Trailing Arm Support
Courtesy of FORD MOTOR CO.
1. Torque : 175 Nm
2. NOTE: Finger tight at this stage.
Fig 3: Identifying Trailing Arm Bolts
Courtesy of FORD MOTOR CO.
Torque : 115 Nm

Fig 4: Locating Trailing Arm Bolts
Courtesy of FORD MOTOR CO.
Fig 5: Locating Trailing Arm Tube Retainer
Courtesy of FORD MOTOR CO.
Torque : 1.9 Nm

Fig 6: Locating Trailing Arm Tube Retainer Bolt
Courtesy of FORD MOTOR CO.
Torque : 115 Nm

Fig 7: Locating Upper Arm Bolt
Courtesy of FORD MOTOR CO.
Fig 8: Locating Trailing Arm Cover Bolts
Courtesy of FORD MOTOR CO.
Refer to: Wheel Bearing and Wheel Hub .
Refer to: Spring .
