Front Lower Arm: Installation

  1. General Equipment  : Transmission Jack

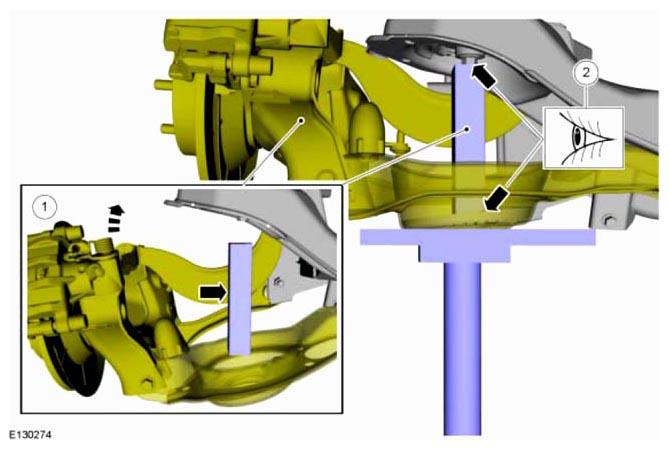

    Fig 1: Checking Trailing Arm Support
    G08055941Courtesy of FORD MOTOR CO.
    2. NOTE: The forward lower arm is marked FRONT. Make a note of the position of the front lower arm to aid installation.
    Fig 2: Locating Front Lower Arm Bolts
    G08055949Courtesy of FORD MOTOR CO.
  2. Torque  : 115 Nm
  3. Refer to: Spring  .
