High Current Battery Junction Box (BJB)
WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
High current BJB is located in left side of engine compartment. See OEM COMPONENT HARNESS LOCATION CHARTS
.

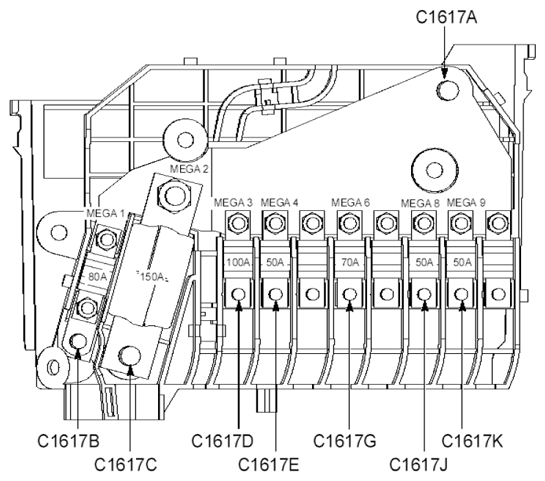

HIGH CURRENT BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| MEGA 1 | 60 | Power Steering Control Module (PSCM) |
| MEGA 2 | 150 | Starter motor, Generator |
| MEGA 3 | 100 | Battery Junction Box (BJB) |
| MEGA 4 | 50 | Body Control Module (BCM) |
| MEGA 5 | - | Not used |
| MEGA 6 | 70 | Rear Junction Box (RJB) |
| MEGA 7 | - | Not used |
| MEGA 8 | 50 | Battery Junction Box (BJB), Engine cooling fan relay |
| MEGA 9 | 50 | Body Control Module (BCM) |
| MEGA 10 | - | Not used |
