Body Control Module (BCM)

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: BCM is located behind right side of dash board. See OEM COMPONENT HARNESS LOCATION CHARTS .

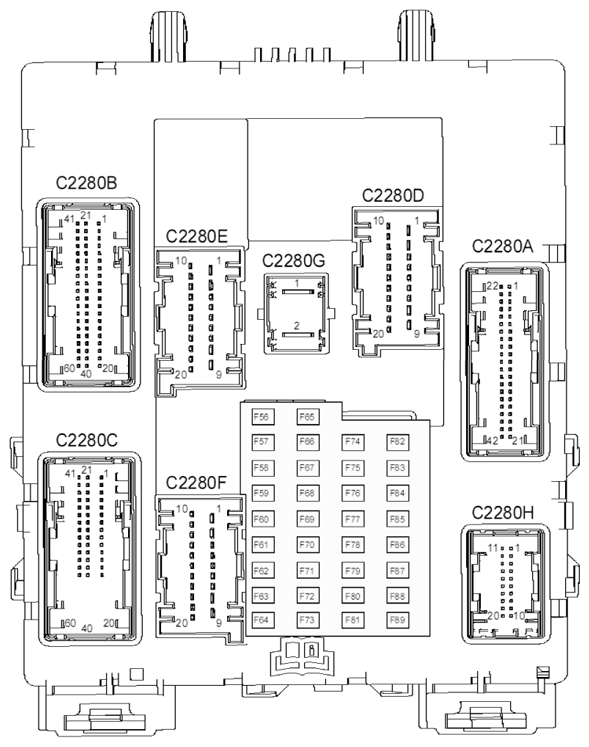

Fig 1: Body Control Module Location, Fuses
G07918682Courtesy of FORD MOTOR CO.
BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND

Fuse Amps Circuits protected
F56 20 Fuel pump relay, Fuel Pump Control Module (FPCM). Fuel pump control capacitor (early production), Battery Junction Box (BJB) - F26
F57 - Not used
F58 - Not used
F59 5 Passive anti-theft transceiver
F60 10 Luggage compartment lamp - 4 door, Luggage compartment lamp, right and left - 5 door, Master window control switch - with driver door module, Footwell lamp, right and left front, Verify mirror lamp, right and left Interior/map lamps assembly, front, Overhead console switch assembly, Dome lamp, rear
F61 20 Cigar lighter, front, Power point, rear
F62 5 Auto-dimming interior mirror, Rain sensor module
F63 - Not used
F64 - Not used
F65 10 Liftgate/decklid release relay, liftgate/decklid latch assembly
F66 20 Driver door unlock relay, Door latch, left front
F67 7.5 Front Control/Display Interface Module (FCDIM), Global Positioning System Module (GPSM), Accessory Protocol Interface Module (APIM)
F68 15 Spare relay
F69 5 Instrument Panel Cluster (IPC)
F70 20 Passenger door unlock relay, Door latch, right front, Door latch, right rear, Door latch, left rear, Door latch, right front, Door latch, left front, Door latch, right rear, Door latch, left rear
F71 10 HVAC module, EMTC and DATC
F72 7.5 Steering Angle Sensor Module (SASM)
F73 5 Data Link Connector (DLC)
F74 15 High beam relay, Headlamp assembly, right and left
F75 15 Fog lamp relay, Fog lamp, right front, Fog lamp, left front
F76 10 Reversing lamp relay, Auto dimming interior mirror, Reversing lamp, right and left - 4 door, Lamp assembly, right and left rear - 5 door.
F77 20 Front washer relay, Rear washer relay, Windshield washer pump motor
F78 5 Ignition switch - without IA, Start/stop switch - with IA
F79 15 Audio Control Module (ACM), Front Controls Interface Module (FCIM)
F80 20 Roof opening panel module
F81 5 Remote Functions Receiver (RFR) module
F82 20 Front washer relay, Rear washer relay
F83 20 Passenger door unlock relay, All lock relay
F84 20 Driver door unlock relay, Spare relay
F85 7.5 Seat heater switch, passenger and driver side, HVAC module, EMTC, In-vehicle temperature/humidity sensor, Compass module
F86 10 Occupant Classification System Module (OCSM), Defrost switch, Restraints Control Module (RCM)
F87 - Not used
F88 - Not used
F89 - Not used
