Broken wire strands in harness

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

= Wiring harness tape
= Wiring strand
= Broken strands intermittent signal
= Circuit insulation

Remove the tape and flex/feel each circuit for a reduction in diameter at break.

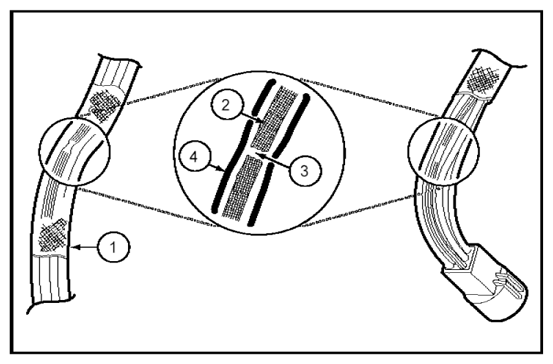

Fig 1: Identifying Broken Wire Strands In Harness

Courtesy of FORD MOTOR CO.
