5 Door

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

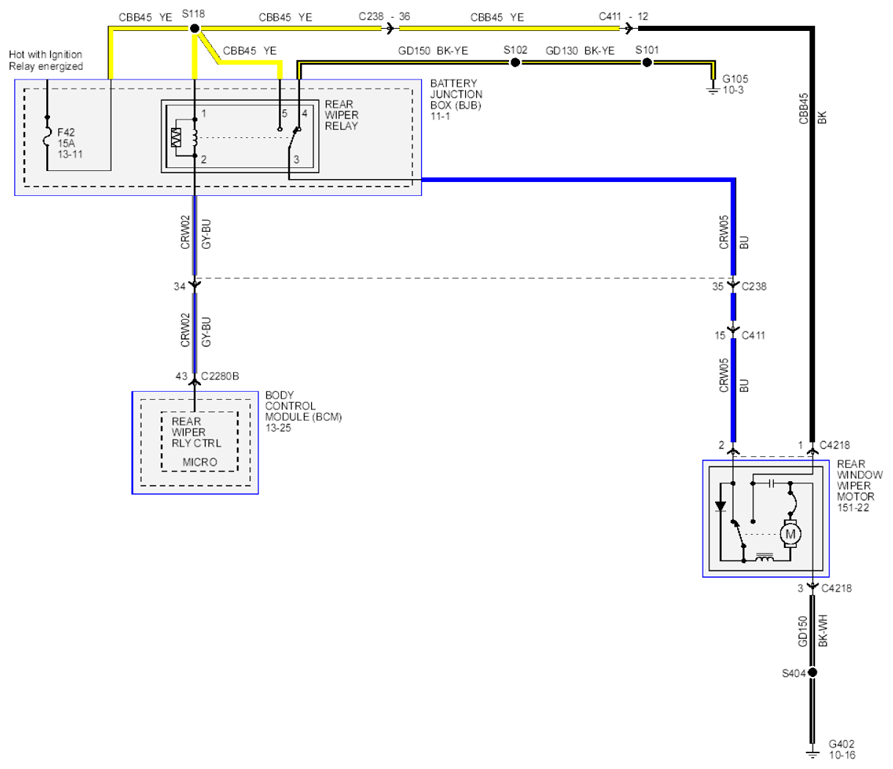

Fig 1: Wiper And Washers Circuit Diagram - 5 Door (1 Of 2)
G07918787Courtesy of FORD MOTOR CO.

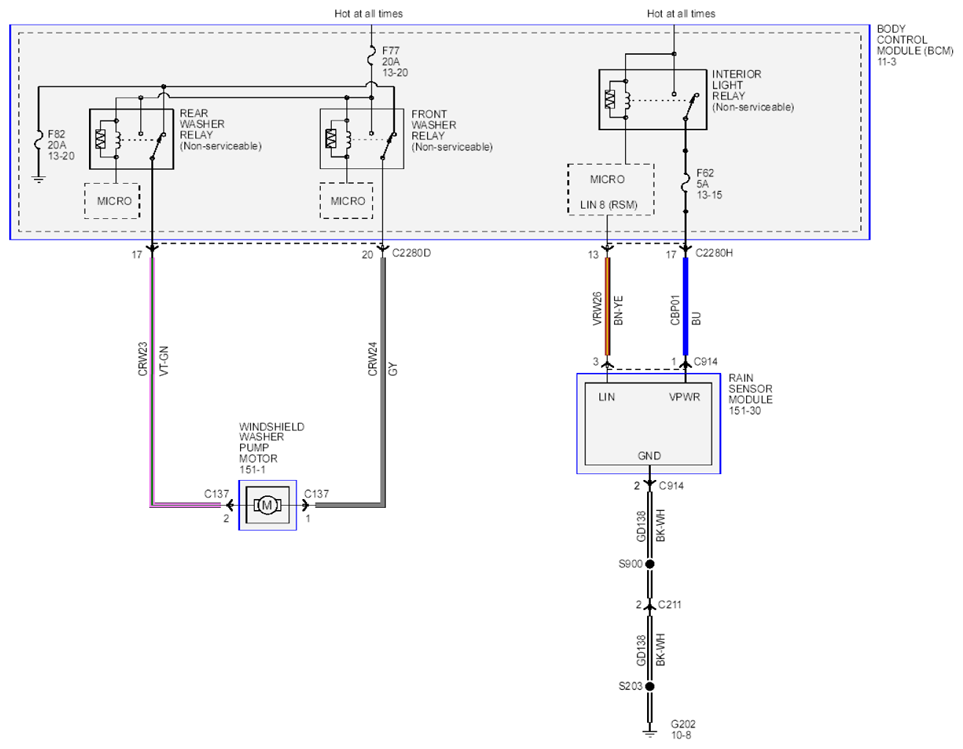

Fig 2: Wiper And Washers Circuit Diagram - 5 Door (2 Of 2)
G07918788Courtesy of FORD MOTOR CO.
