With Door Modules

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

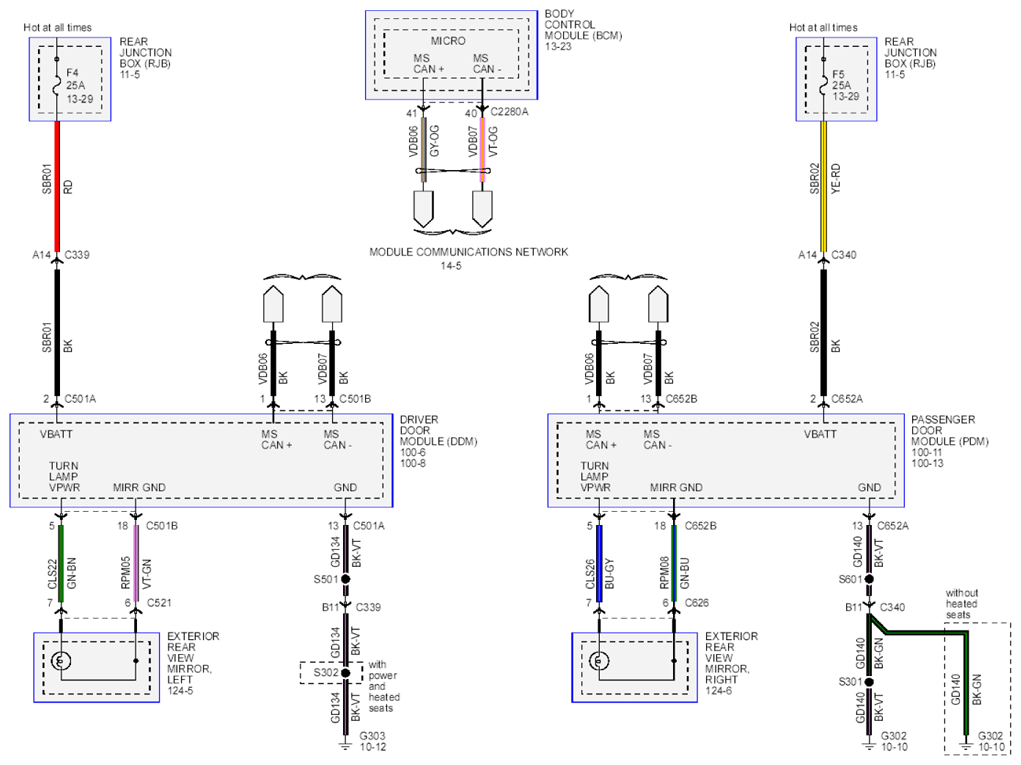

Fig 1: Turn Signal, Stop And Hazard Lamps Circuit Diagram - With Door Modules (1 Of 2)

Courtesy of FORD MOTOR CO.

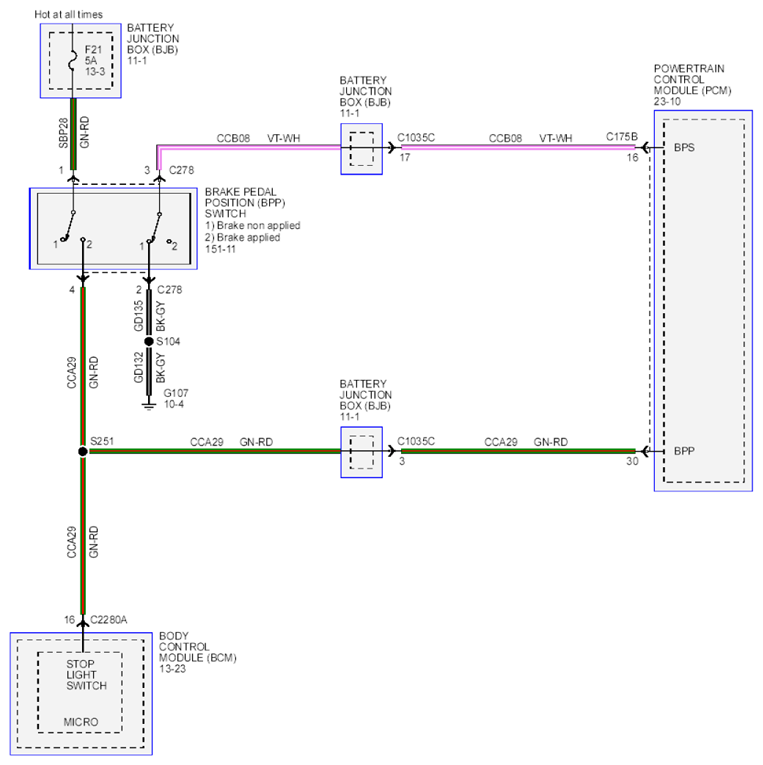

Fig 2: Turn Signal, Stop And Hazard Lamps Circuit Diagram - With Door Modules (2 Of 2)

Courtesy of FORD MOTOR CO.
