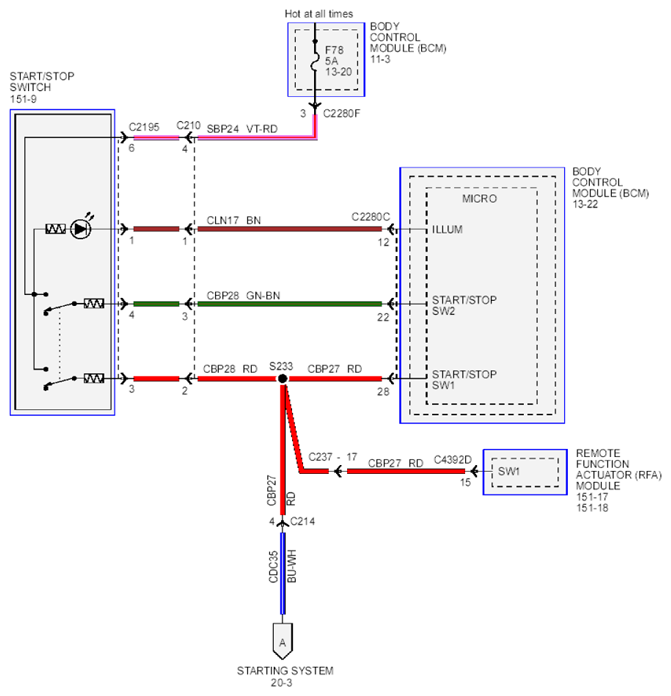

Fig 1: Starting System Circuit Diagram - With IA
G07918725Courtesy of FORD MOTOR CO.

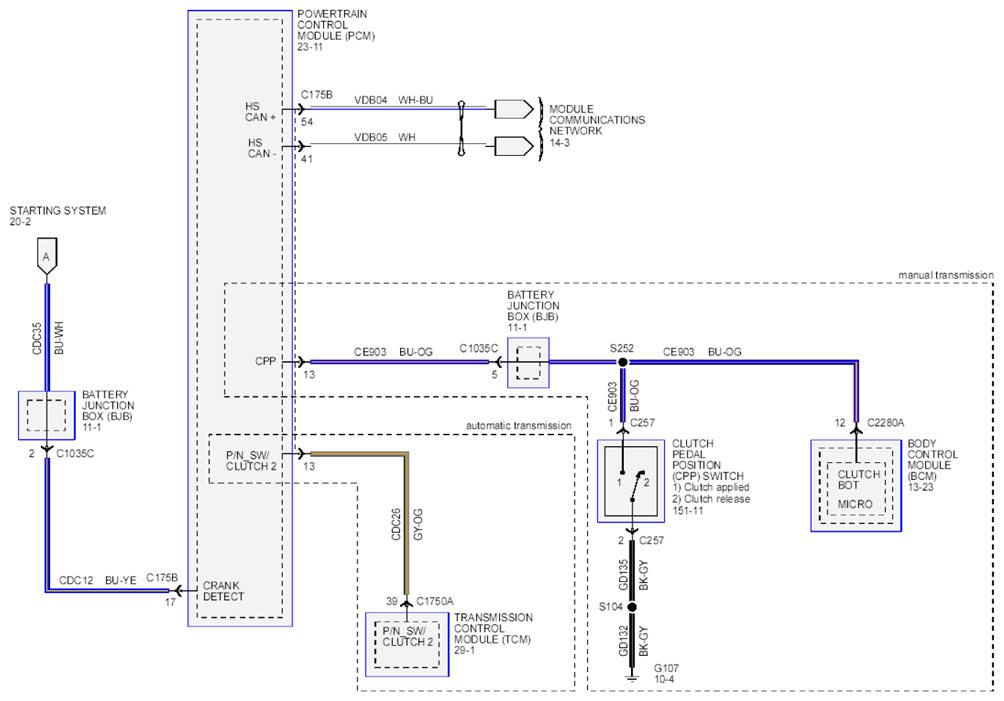

Fig 2: Starting System Circuit Diagram
G07918726Courtesy of FORD MOTOR CO.
