Reversing Lamps

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

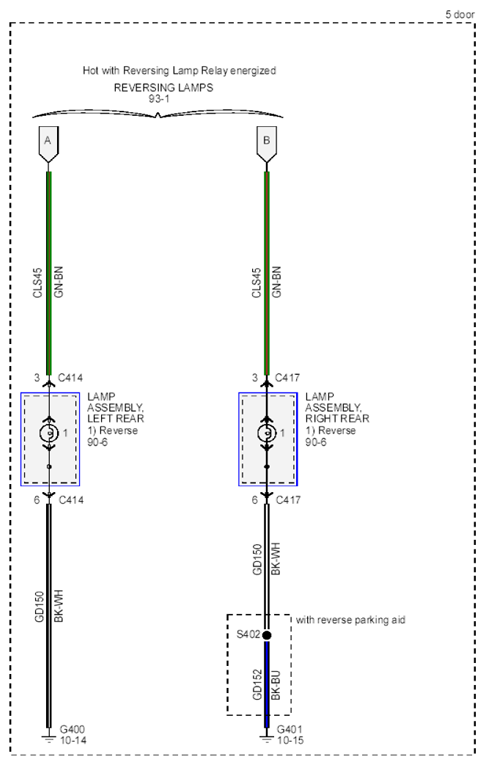

Fig 1: Reversing Lamps Circuit Diagram (1 Of 3)

Courtesy of FORD MOTOR CO.

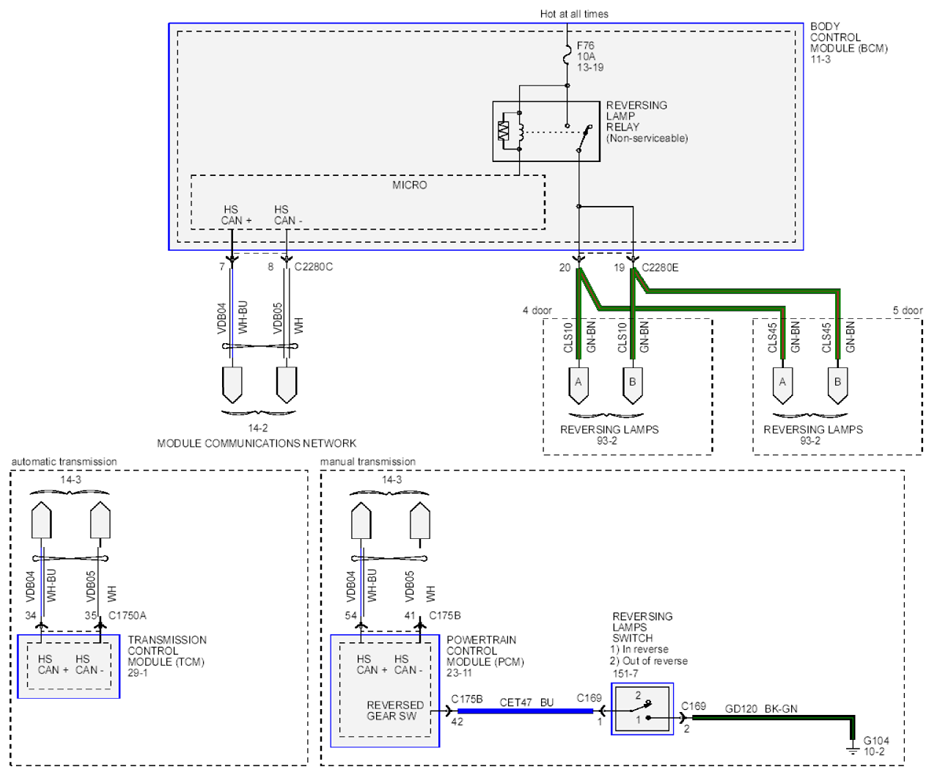

Fig 2: Reversing Lamps Circuit Diagram (2 Of 3)

Courtesy of FORD MOTOR CO.

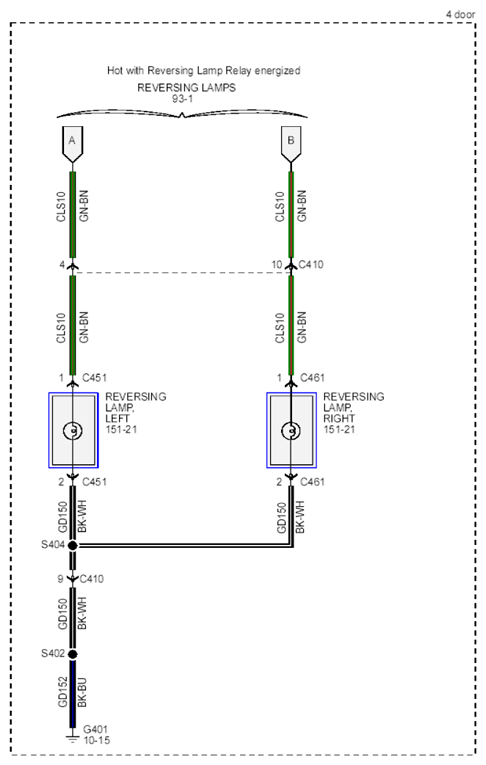

Fig 3: Reversing Lamps Circuit Diagram (3 Of 3)

Courtesy of FORD MOTOR CO.
