With Door Modules

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

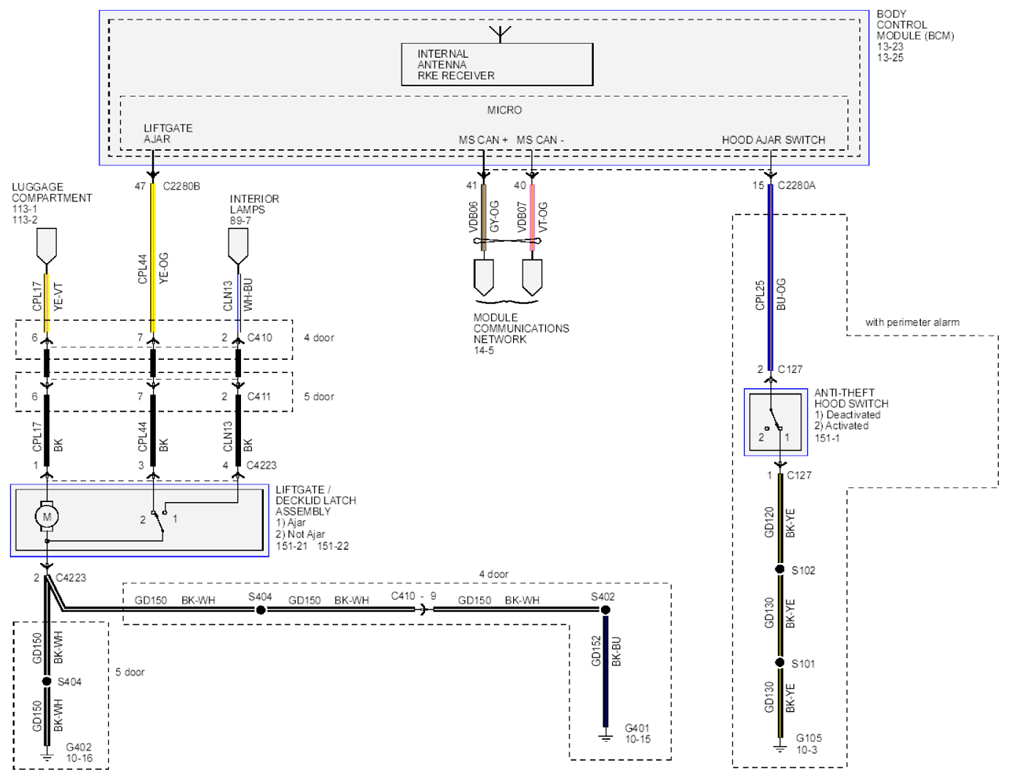

Fig 1: Remote Keyless Entry And Alarm Circuit Diagram - With Door Modules (1 Of 4)

Courtesy of FORD MOTOR CO.

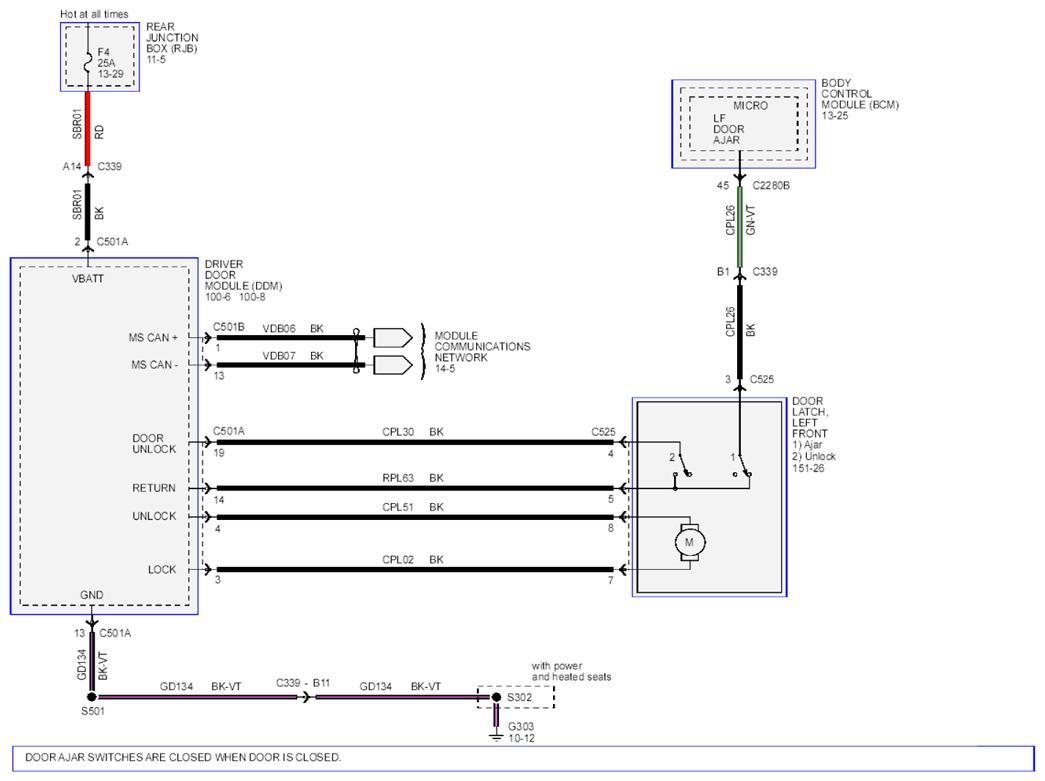

Fig 2: Remote Keyless Entry And Alarm Circuit Diagram - With Door Modules (2 Of 4)

Courtesy of FORD MOTOR CO.

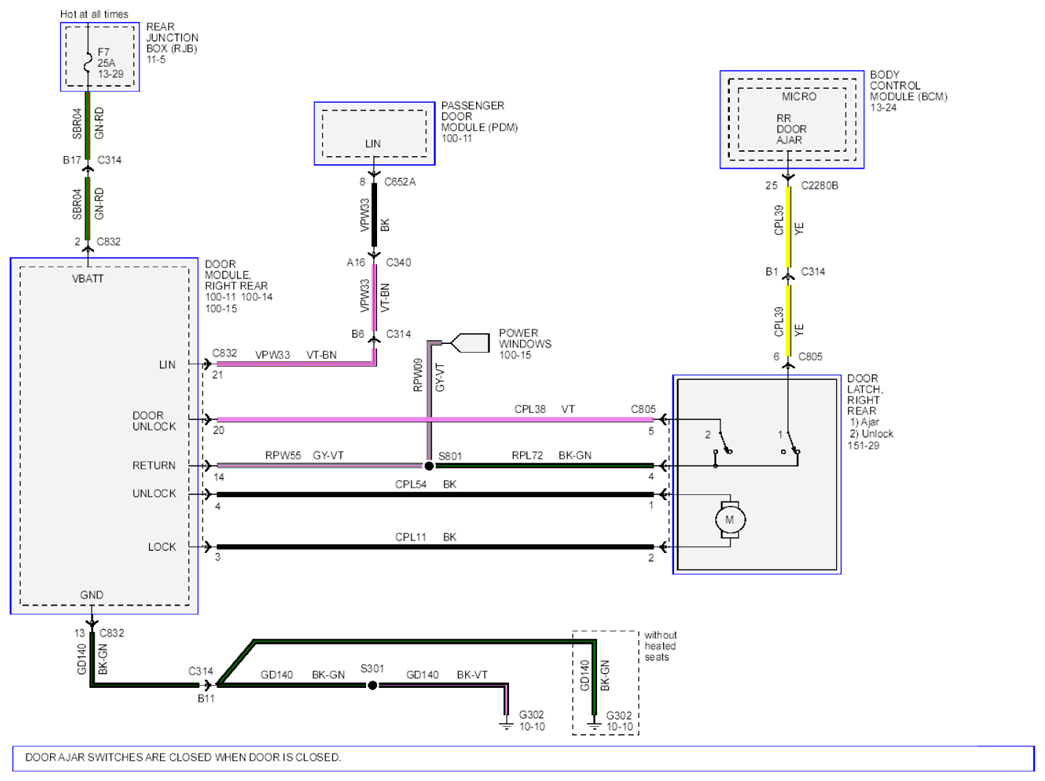

Fig 3: Remote Keyless Entry And Alarm Circuit Diagram - With Door Modules (3 Of 4)

Courtesy of FORD MOTOR CO.

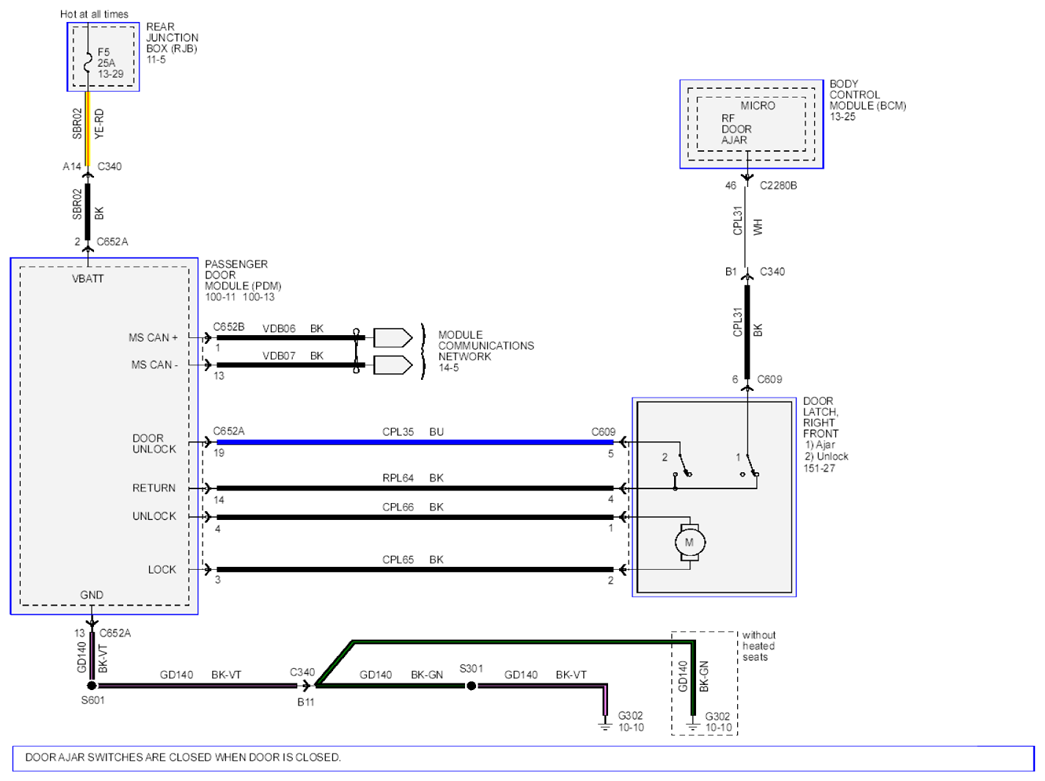

Fig 4: Remote Keyless Entry And Alarm Circuit Diagram - With Door Modules (4 Of 4)

Courtesy of FORD MOTOR CO.

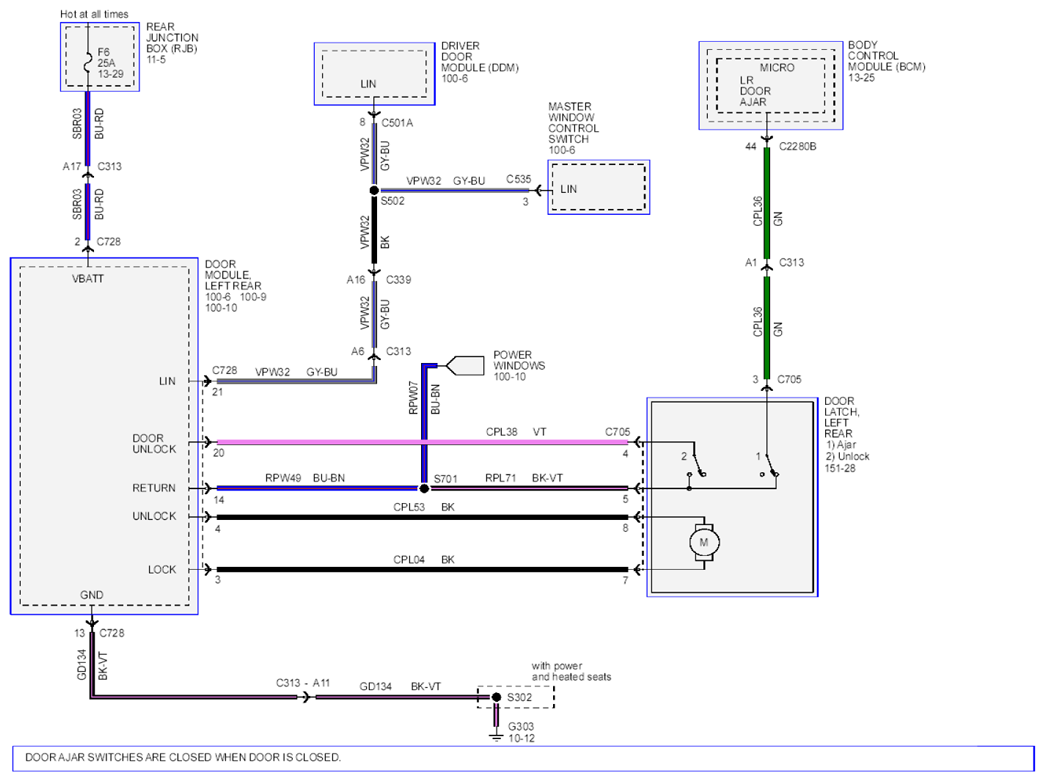

Fig 5: Remote Keyless Entry And Alarm Circuit Diagram

Courtesy of FORD MOTOR CO.
