Except Sync Gen 2

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

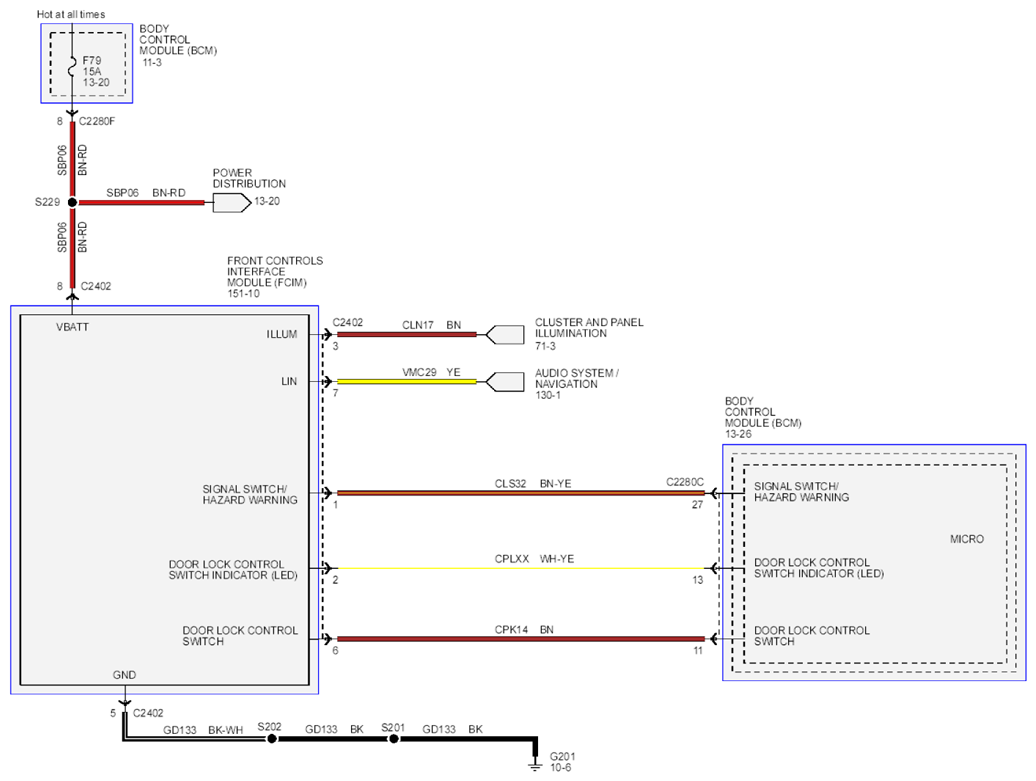

Fig 1: Remote Keyless Entry And Alarm Circuit Diagram - Except SYNC Gen 2
G07918844Courtesy of FORD MOTOR CO.
