Without Door Modules With Rear Power Windows

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

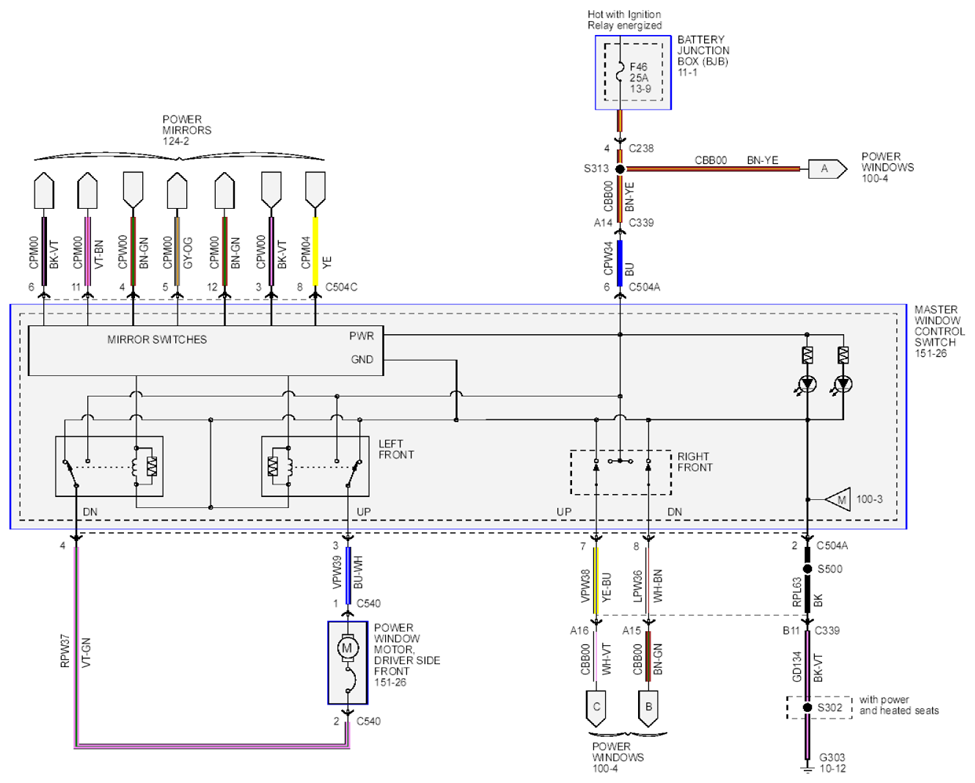

Fig 1: Power Windows Circuit Diagram - Without Door Modules And With Rear Power Windows (1 Of 2)

Courtesy of FORD MOTOR CO.

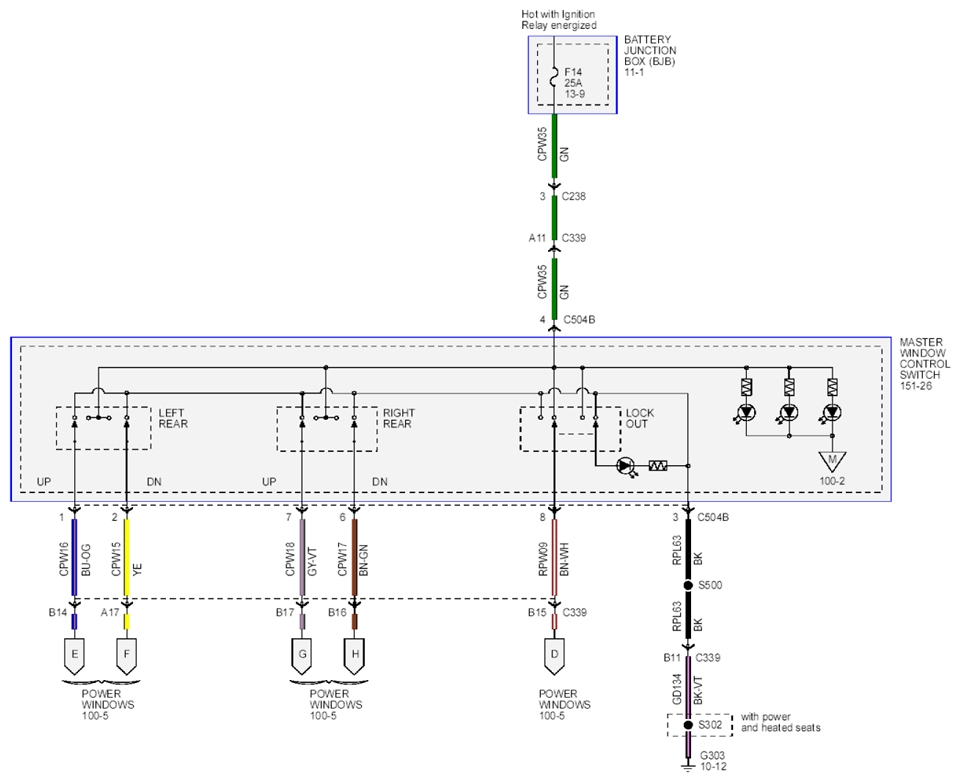

Fig 2: Power Windows Circuit Diagram - Without Door Modules And With Rear Power Windows (2 Of 2)

Courtesy of FORD MOTOR CO.

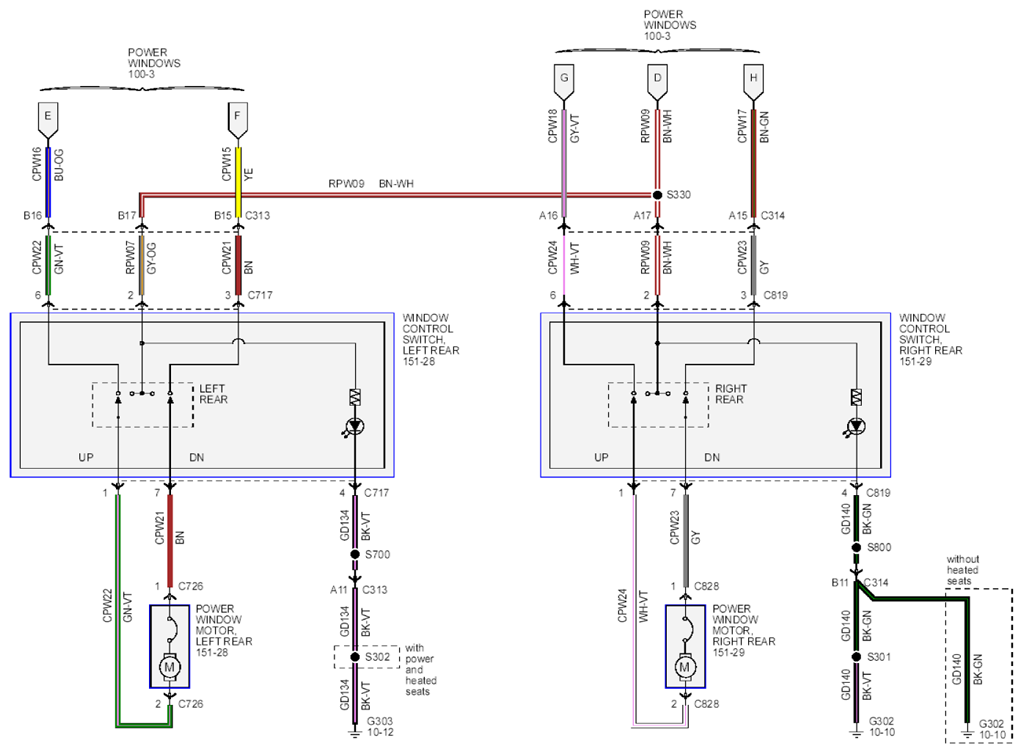

Fig 1: Power Windows Circuit Diagram - Without Door Modules And With Rear Power Windows

Courtesy of FORD MOTOR CO.
