With Door Modules

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

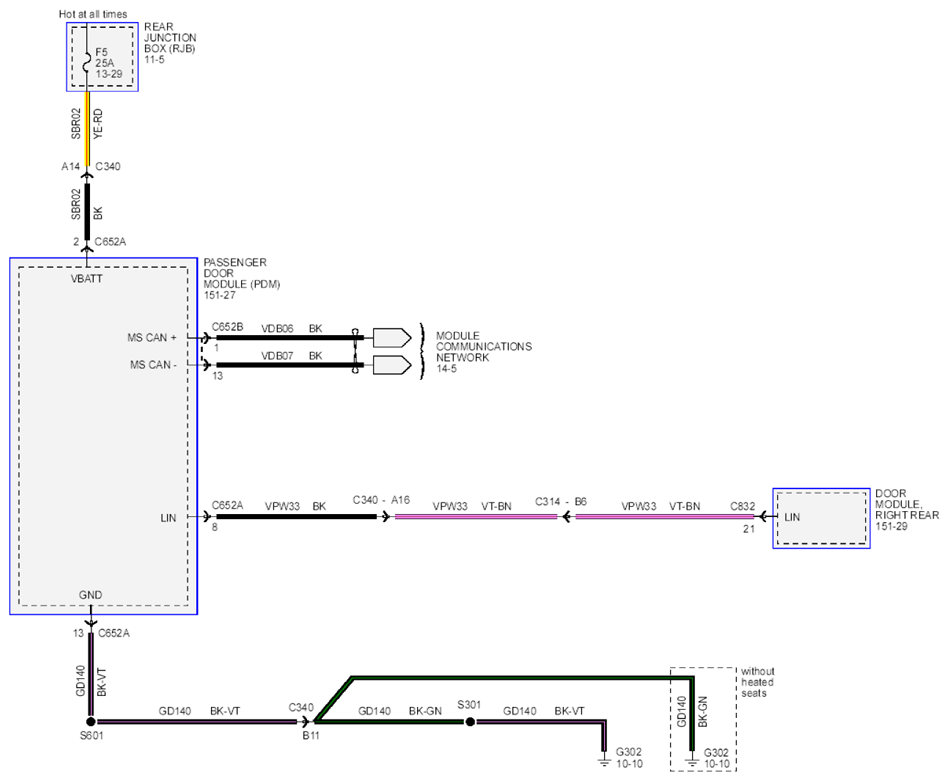

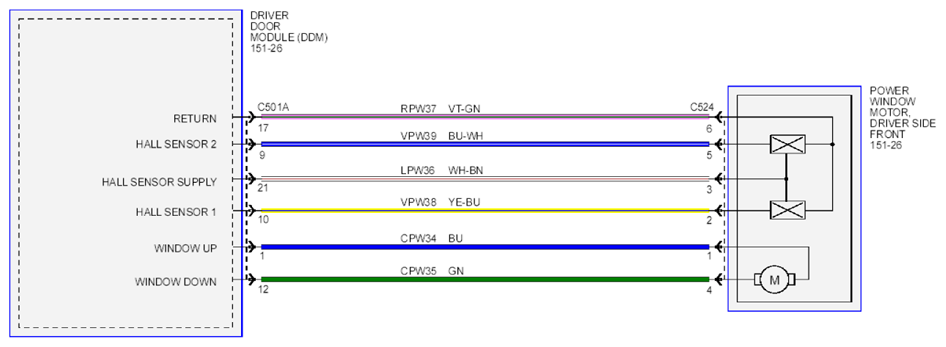

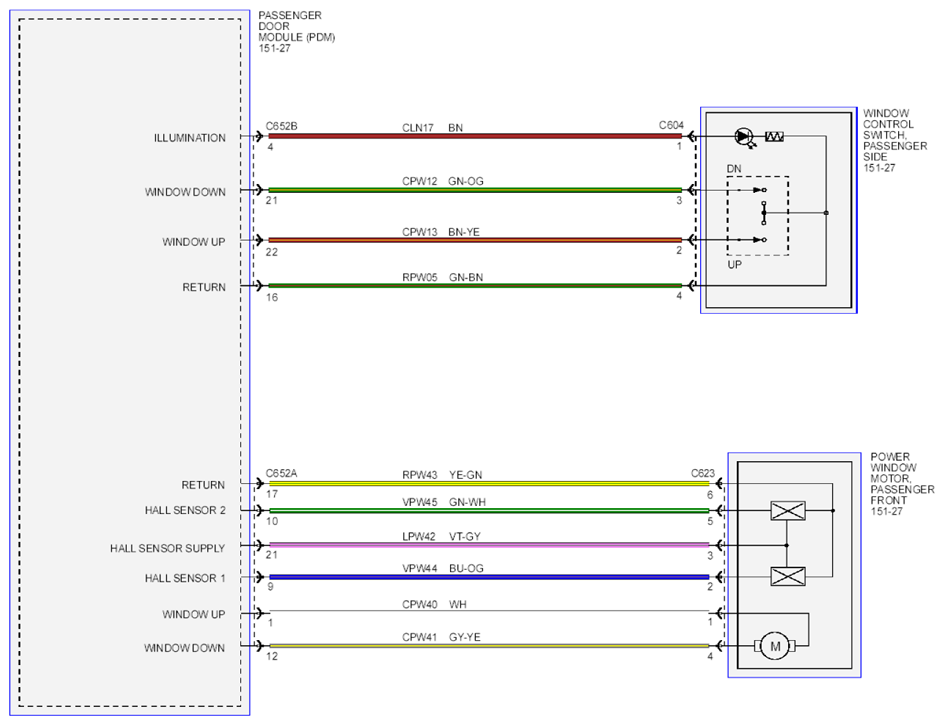

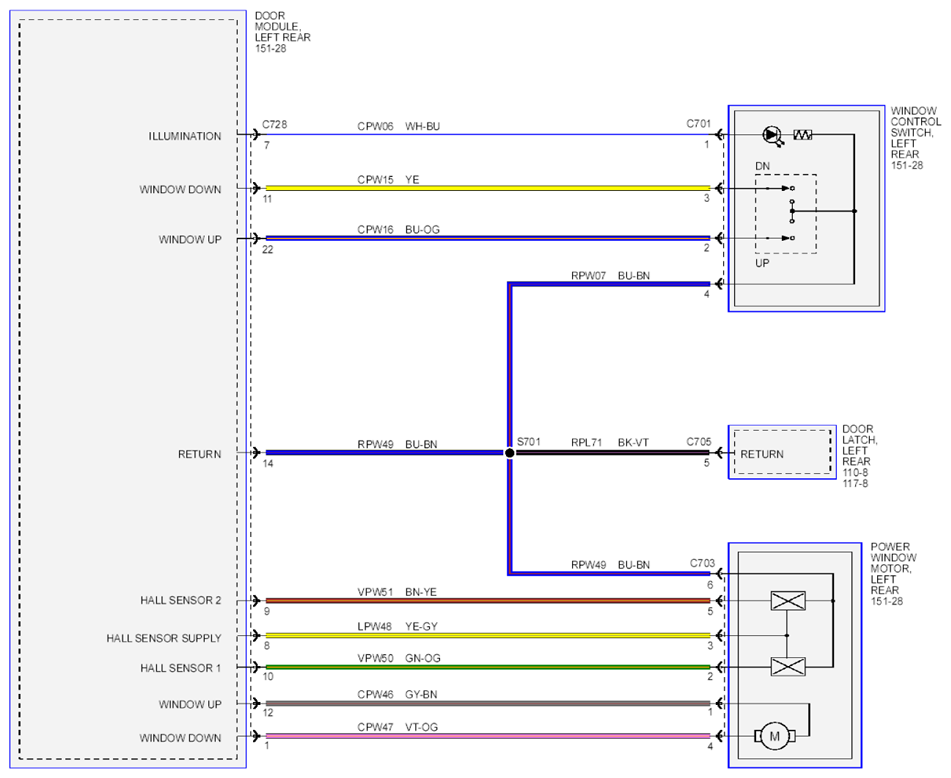

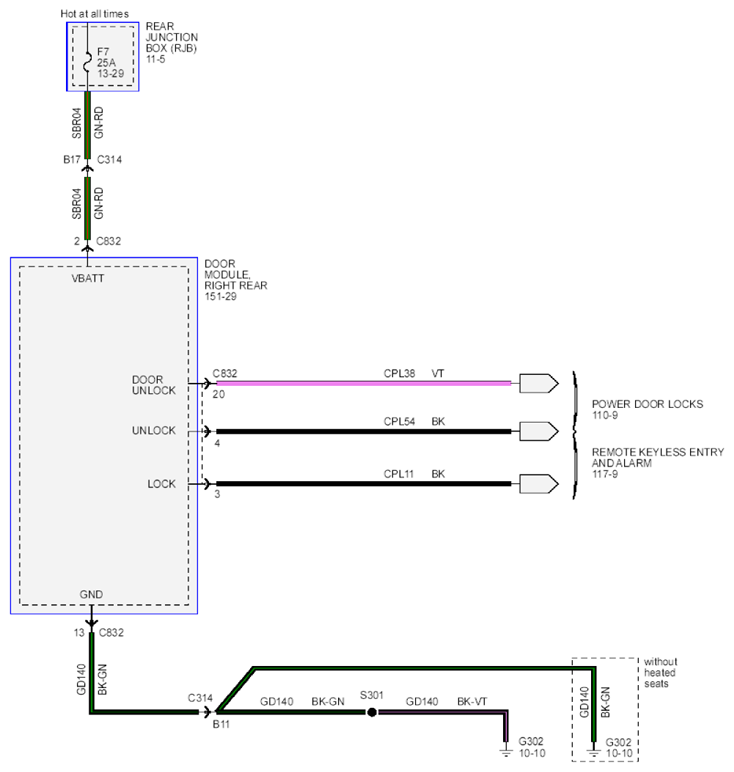

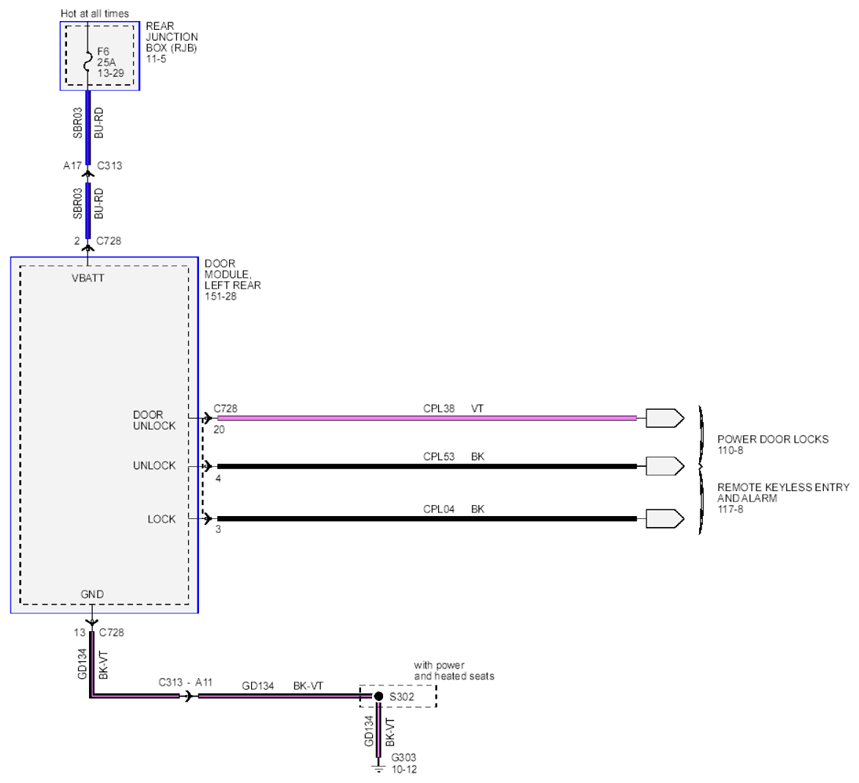

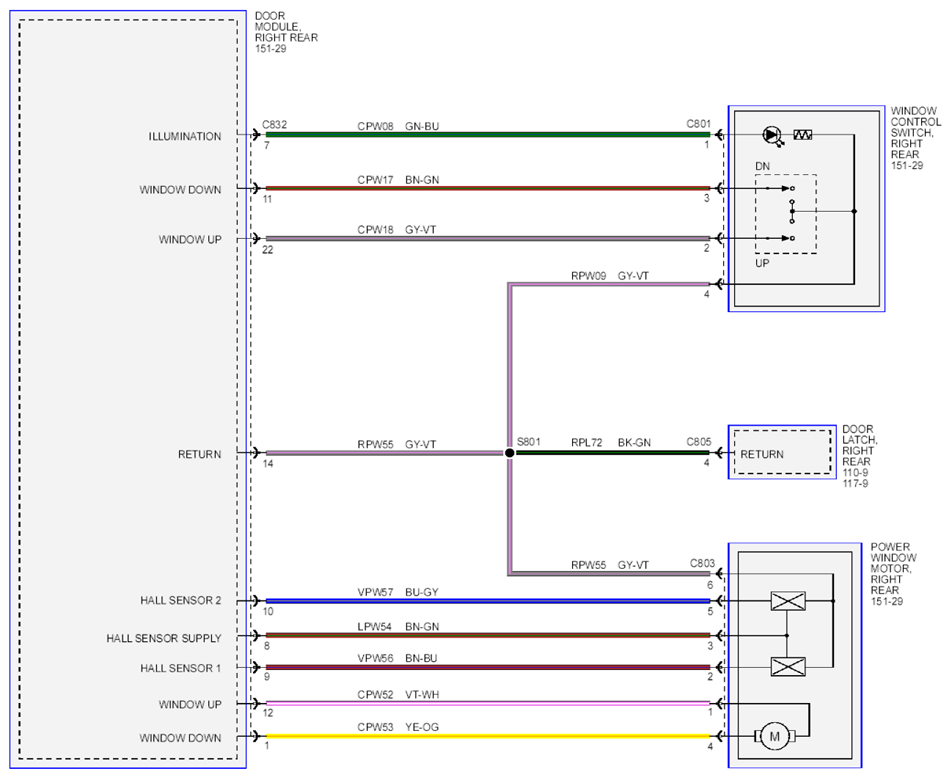

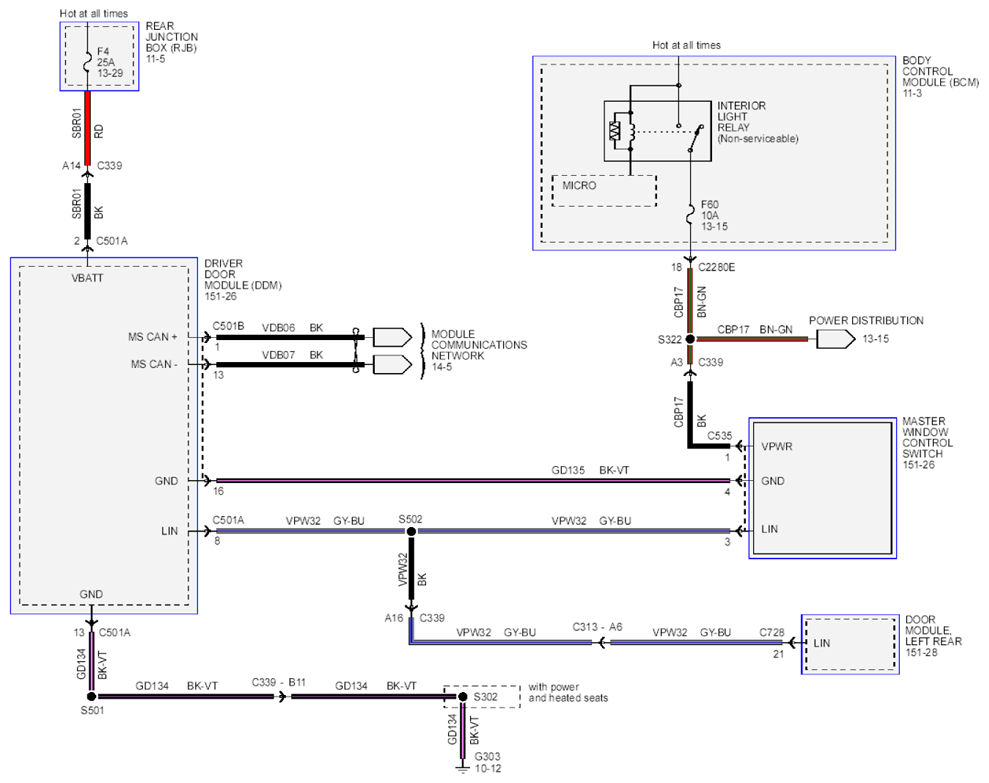

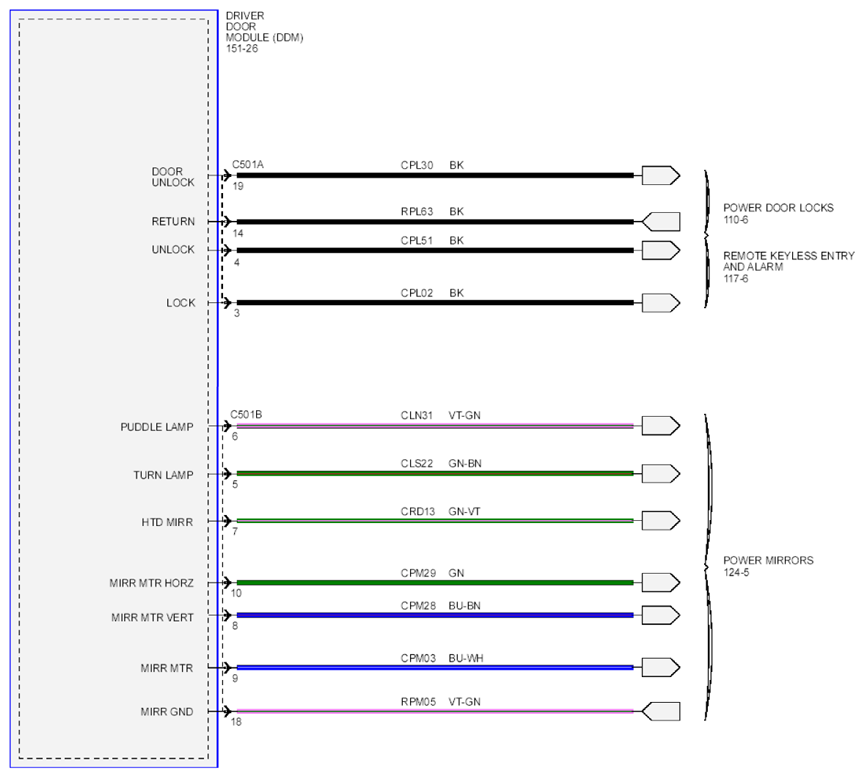

Fig 1: Power Windows Circuit Diagram - With Door Modules (1 Of 10)

Courtesy of FORD MOTOR CO.

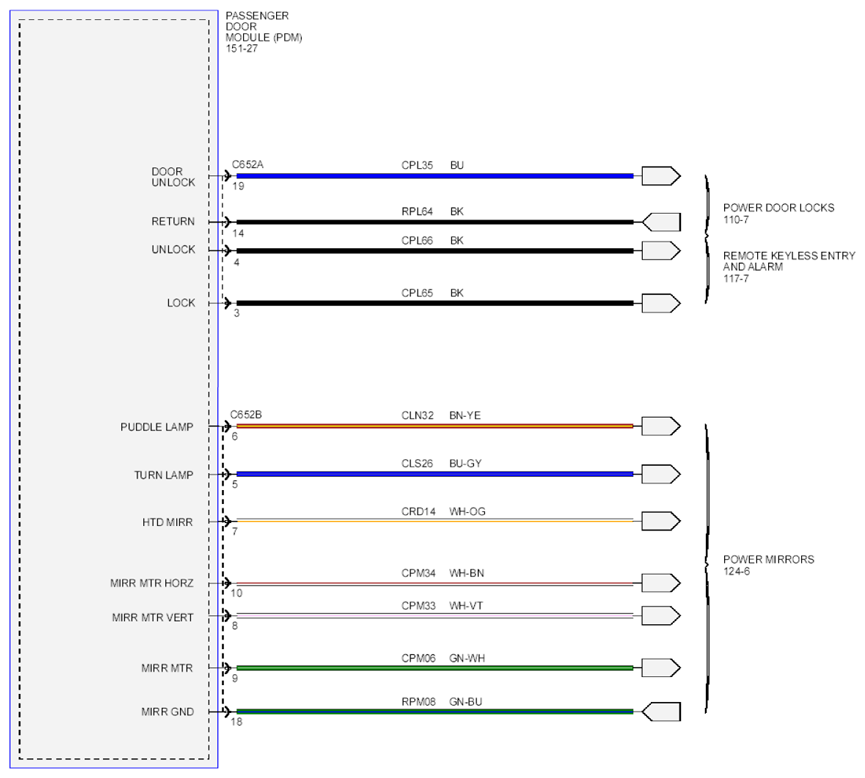

Fig 2: Power Windows Circuit Diagram - With Door Modules (2 Of 10)

Courtesy of FORD MOTOR CO.

Fig 3: Power Windows Circuit Diagram - With Door Modules (3 Of 10)

Courtesy of FORD MOTOR CO.

Fig 4: Power Windows Circuit Diagram - With Door Modules (4 Of 10)

Courtesy of FORD MOTOR CO.

Fig 5: Power Windows Circuit Diagram - With Door Modules (5 Of 10)

Courtesy of FORD MOTOR CO.

Fig 6: Power Windows Circuit Diagram - With Door Modules (6 Of 10)

Courtesy of FORD MOTOR CO.

Fig 7: Power Windows Circuit Diagram - With Door Modules (7 Of 10)

Courtesy of FORD MOTOR CO.

Fig 8: Power Windows Circuit Diagram - With Door Modules (8 Of 10)

Courtesy of FORD MOTOR CO.

Fig 9: Power Windows Circuit Diagram - With Door Modules (9 Of 10)

Courtesy of FORD MOTOR CO.

Fig 10: Power Windows Circuit Diagram - With Door Modules (10 Of 10)

Courtesy of FORD MOTOR CO.
