Without Door Modules Without Rear Power Windows

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

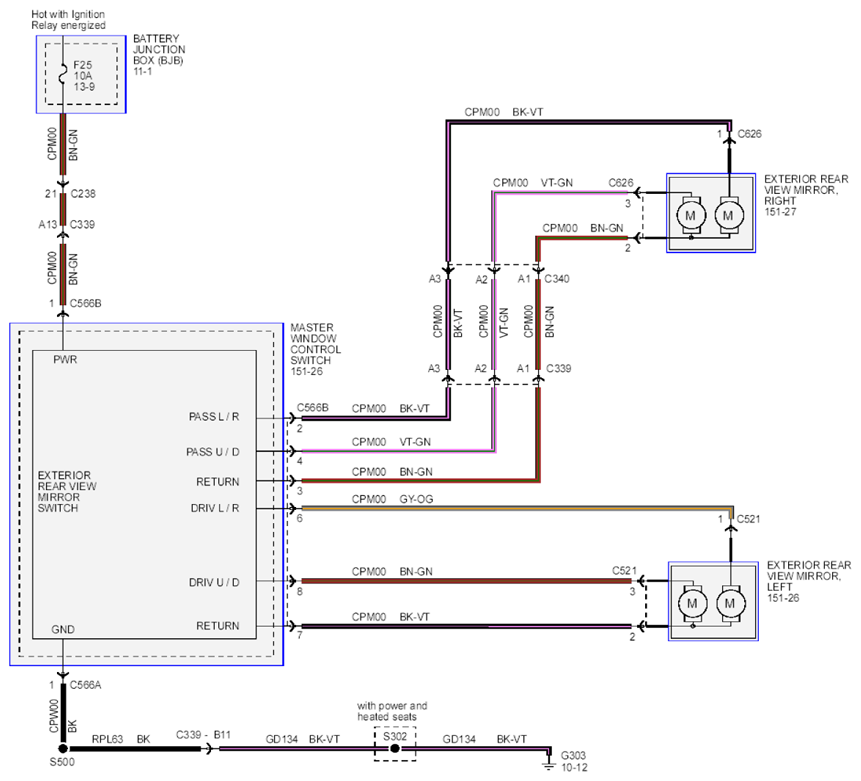

Fig 1: Power Mirrors Circuit Diagram - Without Door Modules And Without Rear Power Windows
G07918864Courtesy of FORD MOTOR CO.
