Without IA

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

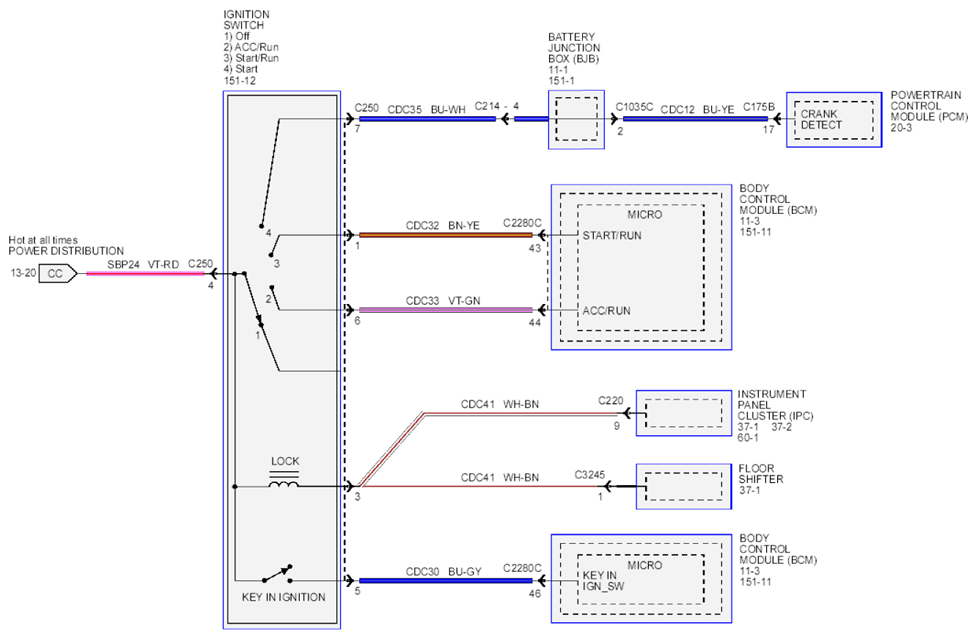

Fig 1: Power Distribution Circuit Diagram - Without IA
G07918707Courtesy of FORD MOTOR CO.
