With IA

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

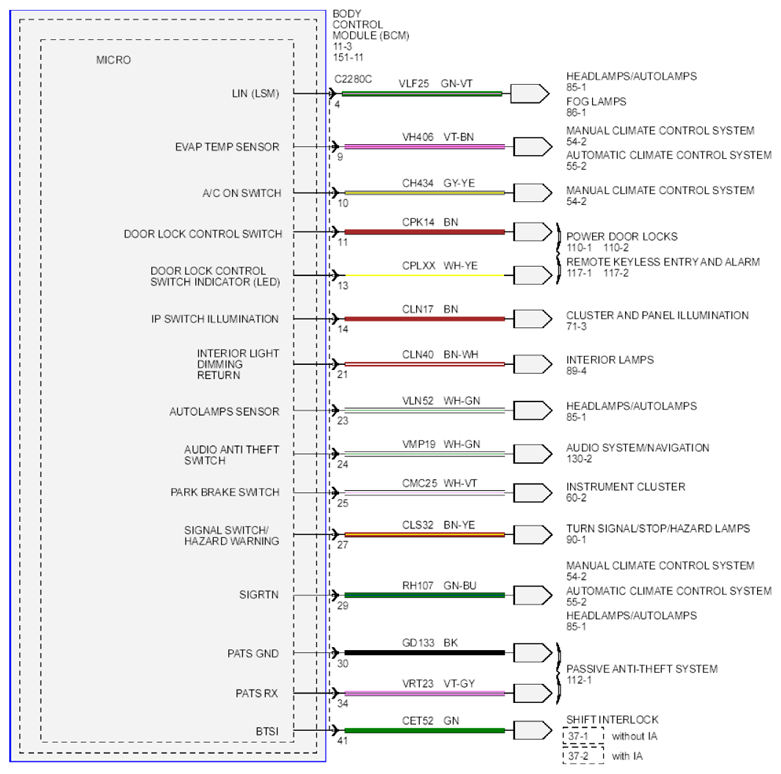

Fig 1: Power Distribution Circuit Diagram - With IA (1 Of 6)

Courtesy of FORD MOTOR CO.

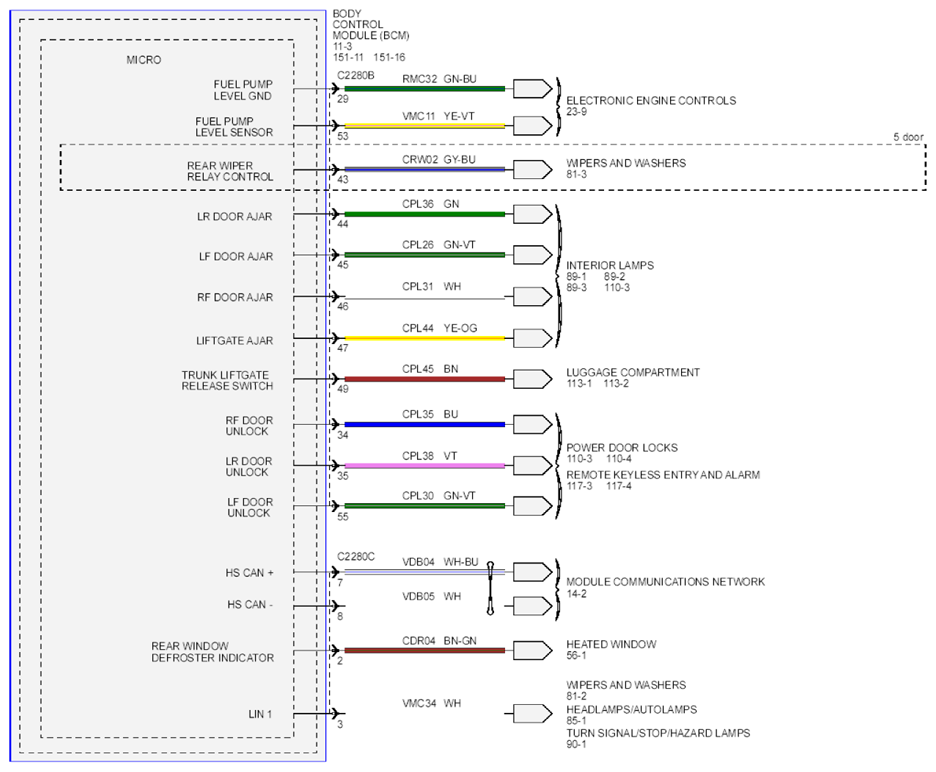

Fig 2: Power Distribution Circuit Diagram - With IA (2 Of 6)

Courtesy of FORD MOTOR CO.

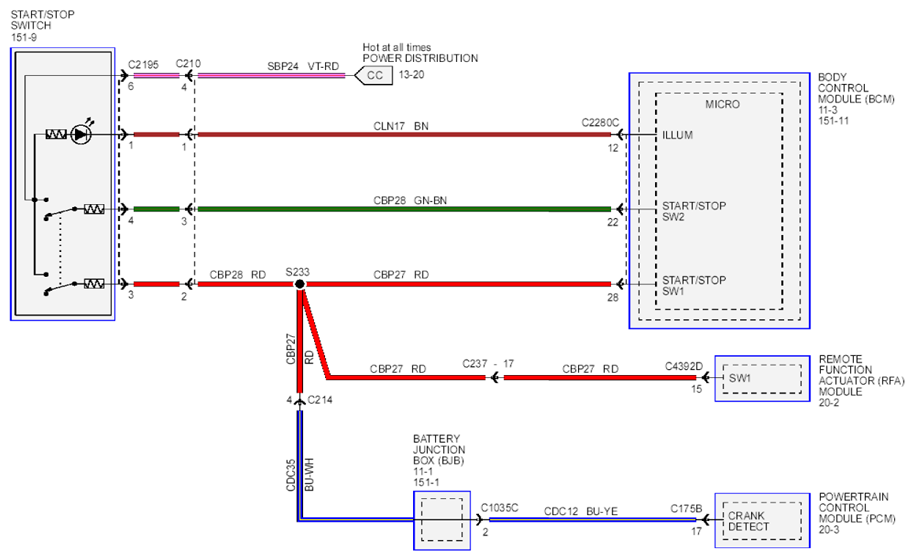

Fig 3: Power Distribution Circuit Diagram - With IA (3 Of 6)

Courtesy of FORD MOTOR CO.

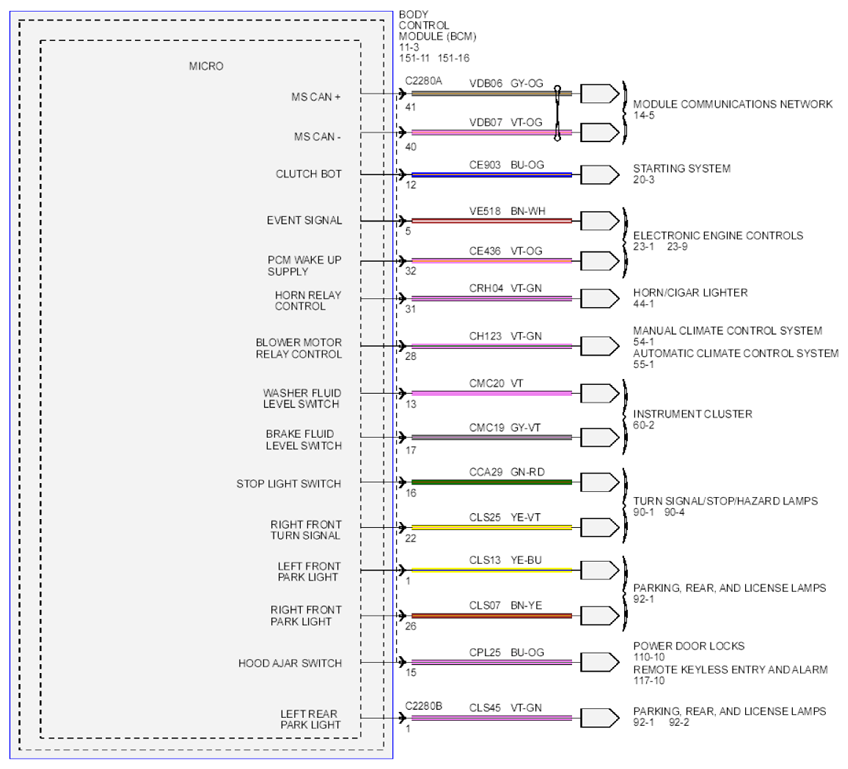

Fig 4: Power Distribution Circuit Diagram - With IA (4 Of 6)

Courtesy of FORD MOTOR CO.

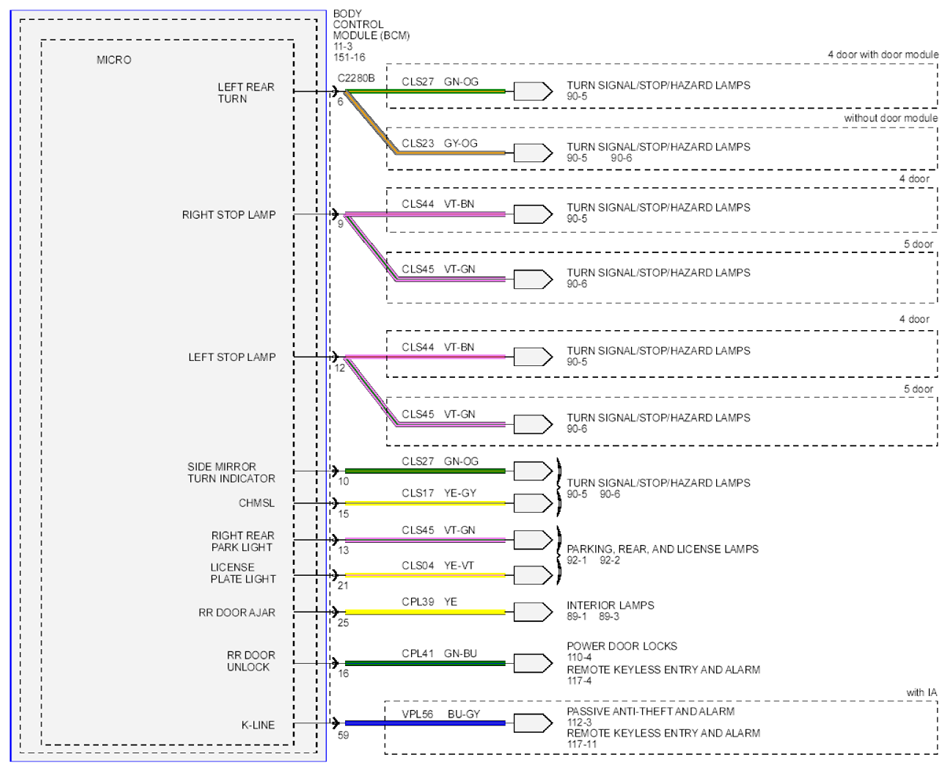

Fig 5: Power Distribution Circuit Diagram - With IA (5 Of 6)

Courtesy of FORD MOTOR CO.

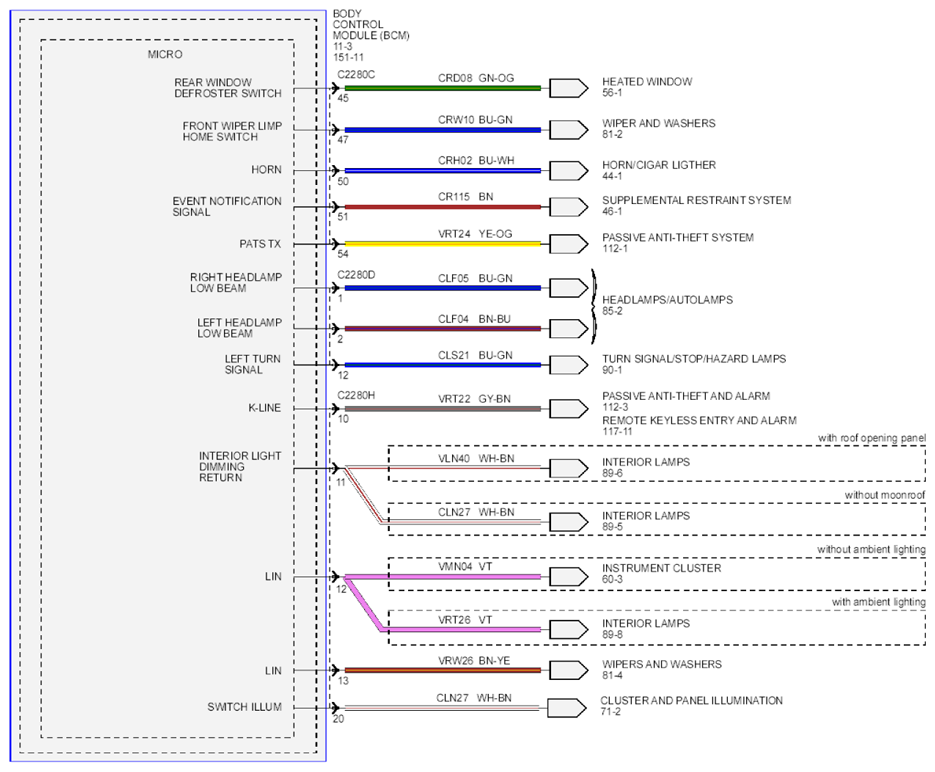

Fig 6: Power Distribution Circuit Diagram - With IA (6 Of 6)

Courtesy of FORD MOTOR CO.
