F7, F8, F15, F18, F21, F24, F26

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

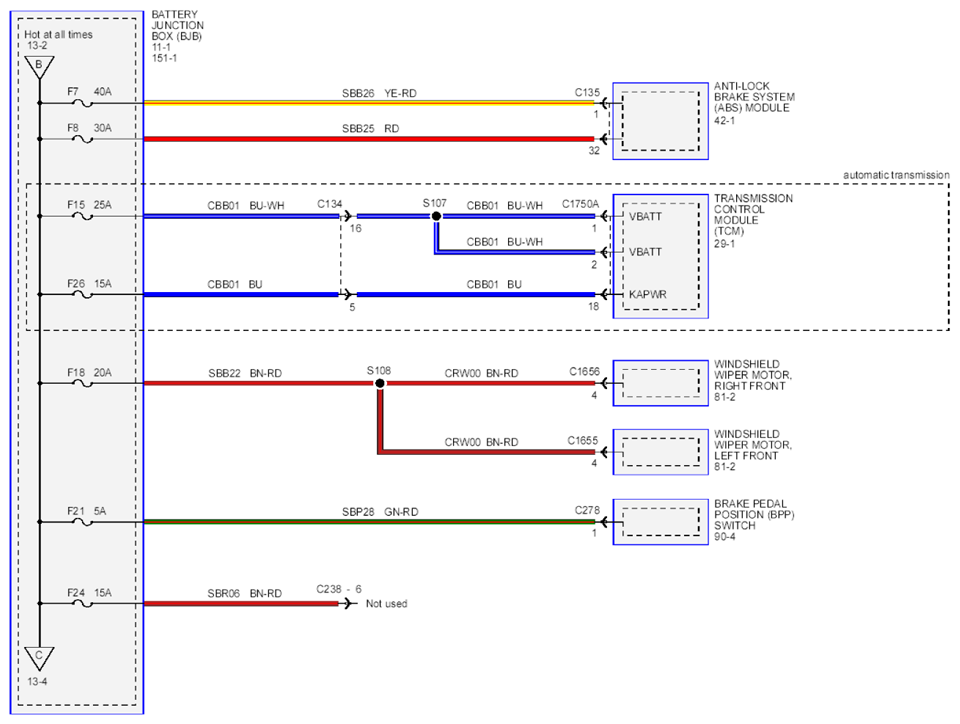

Fig 1: Power Distribution Circuit Diagram - F7, F8, F15, F18, F21, F24 And F26
G07918689Courtesy of FORD MOTOR CO.
