F59, F60, F61, F62, F81

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

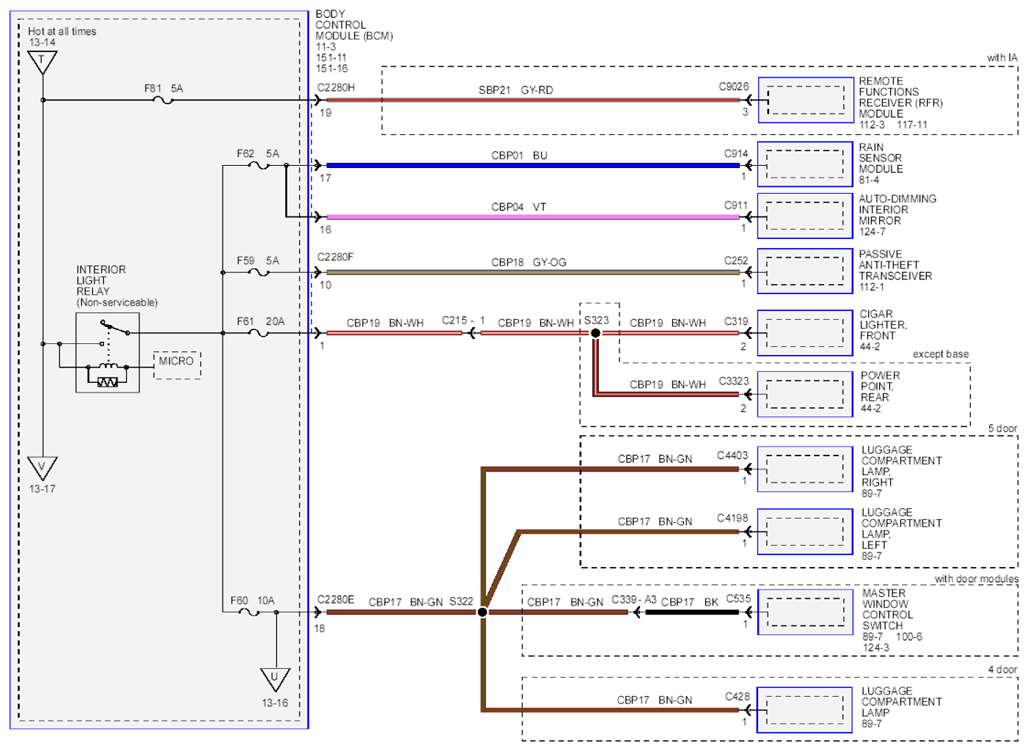

Fig 1: Power Distribution Circuit Diagram - F59, F60, F61, F62 And F81 (1 Of 2)

Courtesy of FORD MOTOR CO.

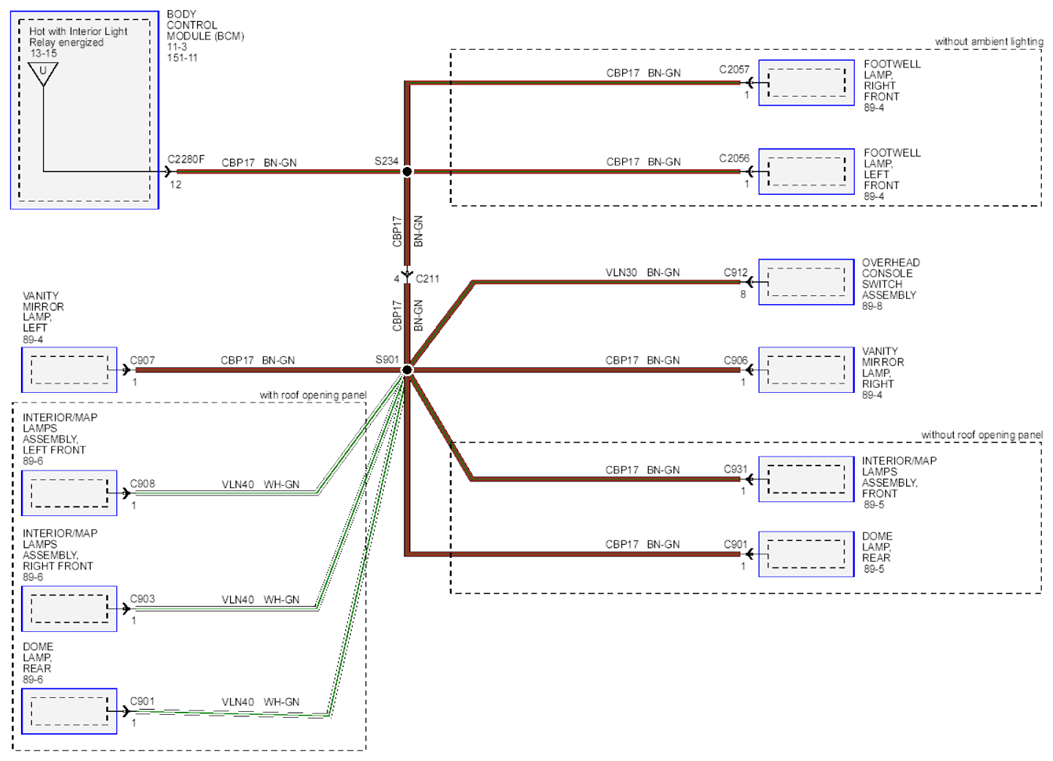

Fig 2: Power Distribution Circuit Diagram - F59, F60, F61, F62 And F81 (2 Of 2)

Courtesy of FORD MOTOR CO.
