F56, F72, F86

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

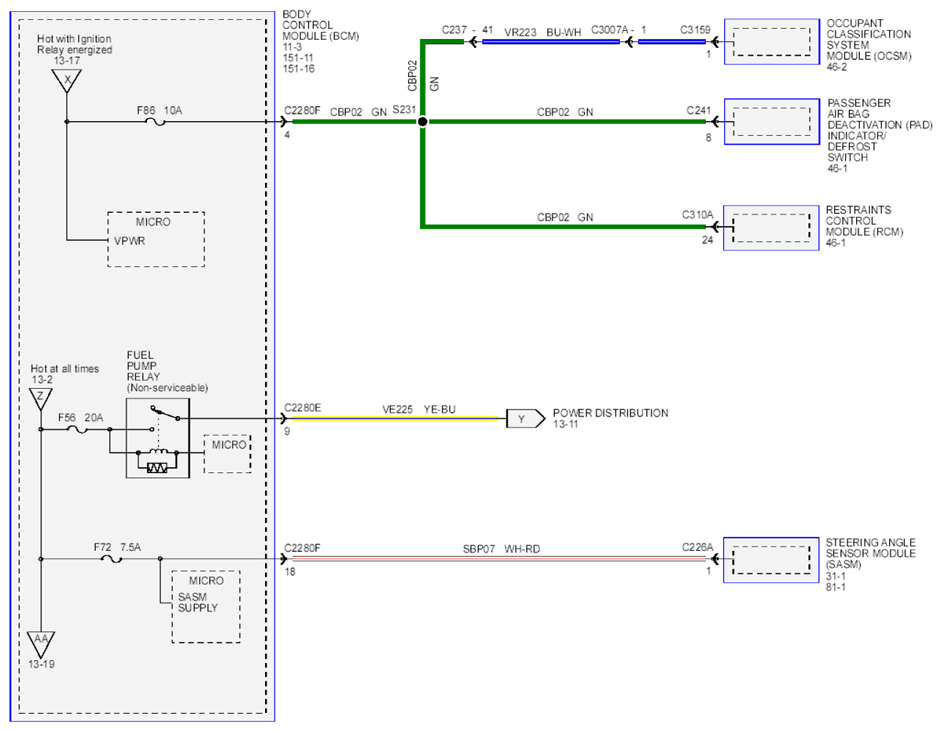

Fig 1: Power Distribution Circuit Diagram - F56, F72 And F86
G07918704Courtesy of FORD MOTOR CO.
