F33, F34, F35, F36

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

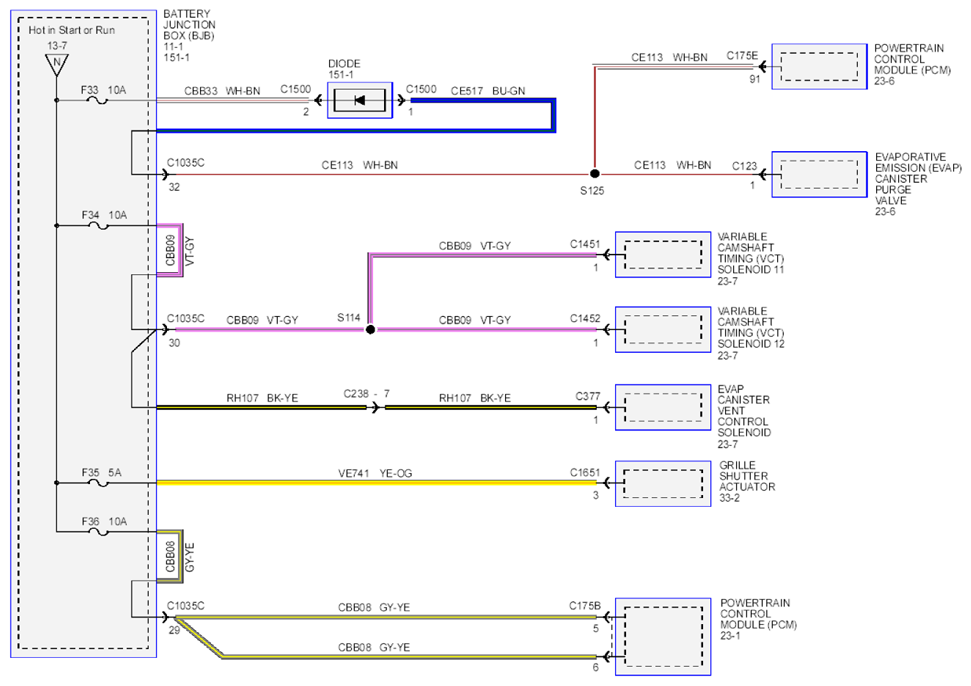

Fig 1: Power Distribution Circuit Diagram - F33, F34, F35 And F36
G07918694Courtesy of FORD MOTOR CO.
