F2, F4, F5, F6, F7, F9, F23

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

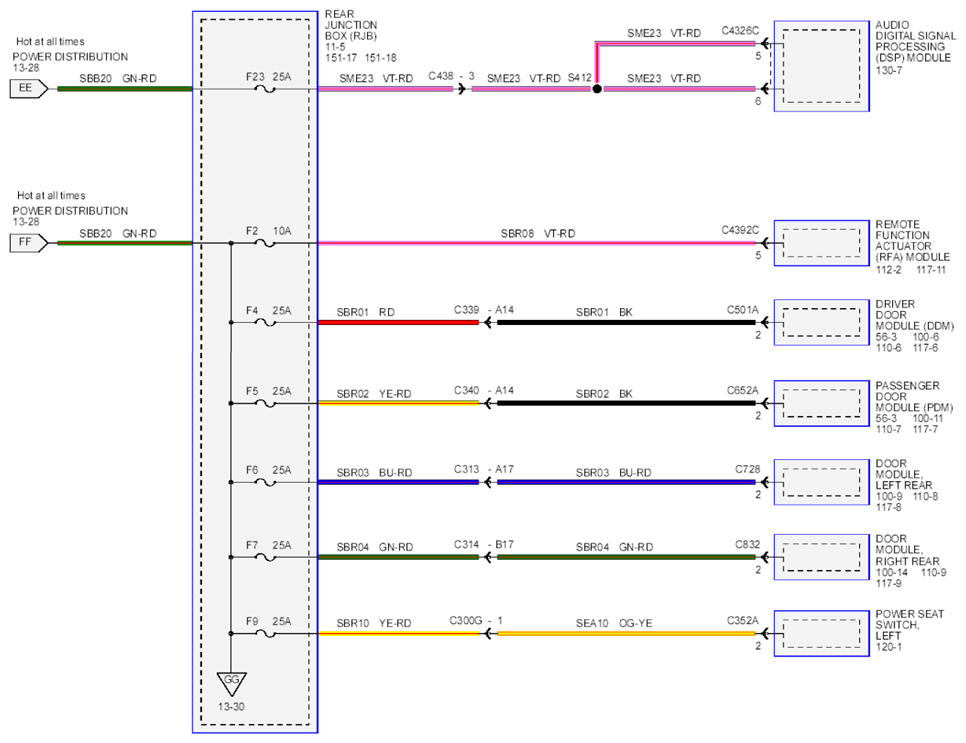

Fig 1: Power Distribution Circuit Diagram - F2, F4, F5, F6, F7, F9 And F23
G07918715Courtesy of FORD MOTOR CO.
