F14, F19, F25, F46

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

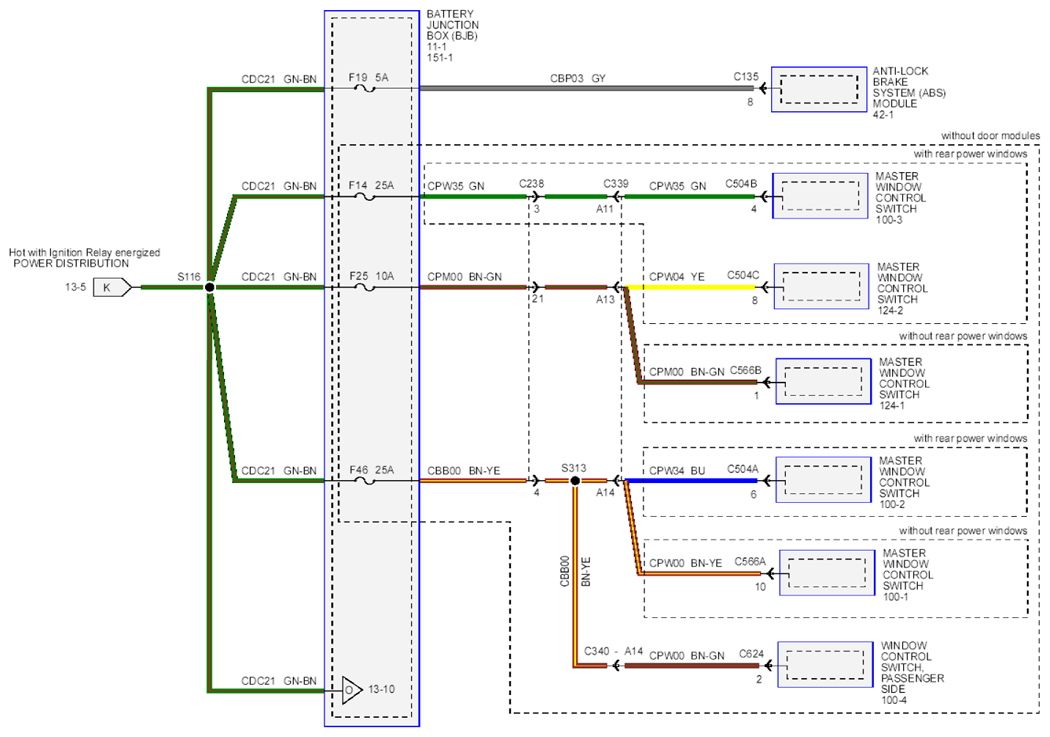

Fig 1: Power Distribution Circuit Diagram - F14, F19, F25 And F46
G07918695Courtesy of FORD MOTOR CO.
