Home >> Ford >> 2013 >> Focus Titanium, 4D Sedan, Standard Trans, Gas >> Repair and Diagnosis >> External Pages >> Different car >> Section 12 (OEM Wiring Diagrams) >> Power Distribution >> F10, F13, F20, F27, F29

F10, F13, F20, F27, F29

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

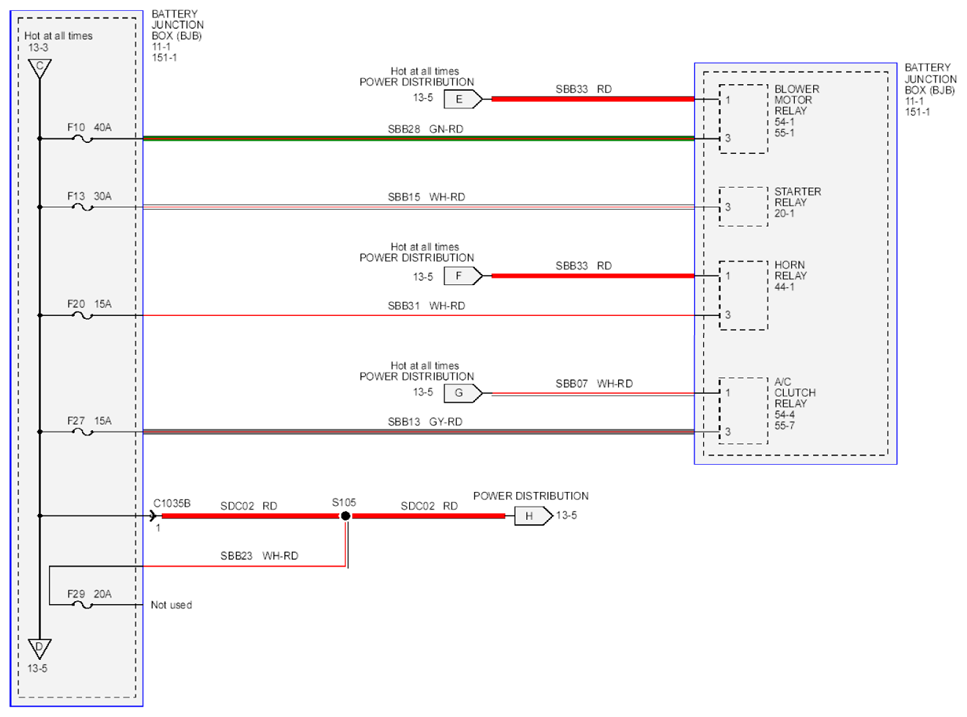

Fig 1: Power Distribution Circuit Diagram - F10, F13, F20, F27 And F29
G07918690Courtesy of FORD MOTOR CO.
