With A

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

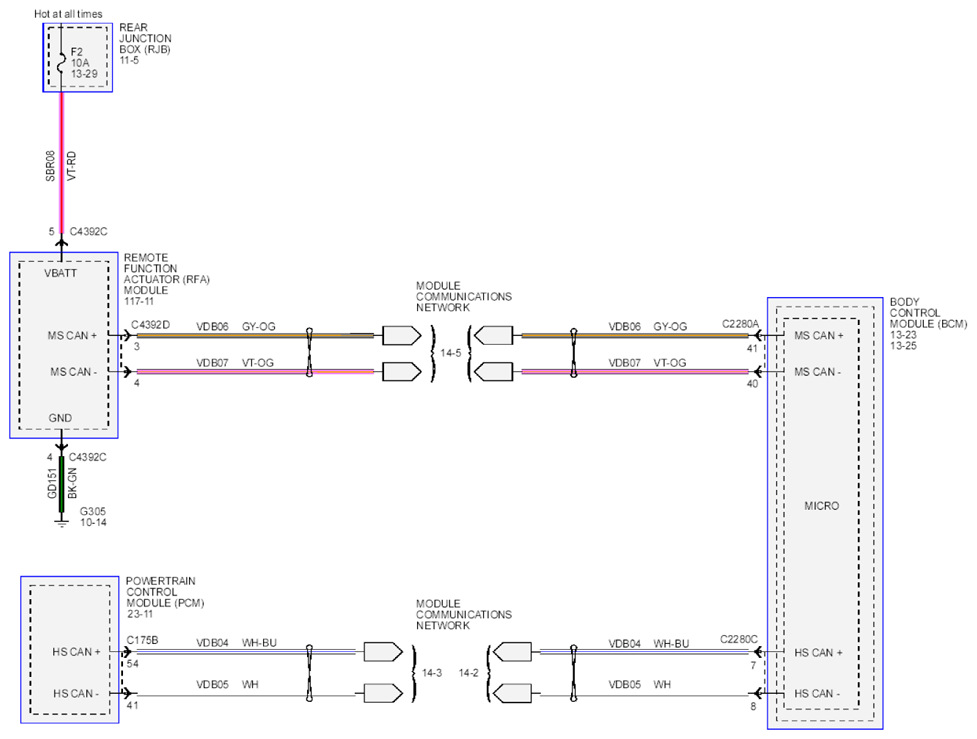

Fig 1: Passive Anti-Theft System Circuit Diagram - With A (1 Of 2)
G07918839Courtesy of FORD MOTOR CO.

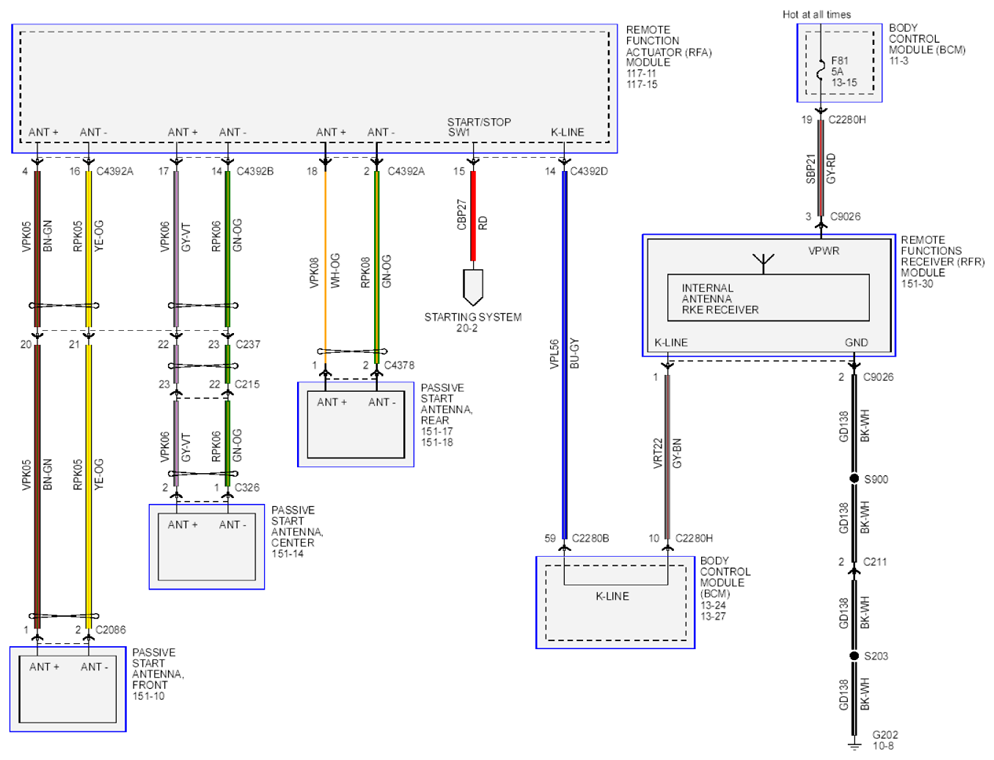

Fig 2: Passive Anti-Theft System Circuit Diagram - With A (2 Of 2)
G07918840Courtesy of FORD MOTOR CO.
