Passive Anti-Theft System: Notes

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

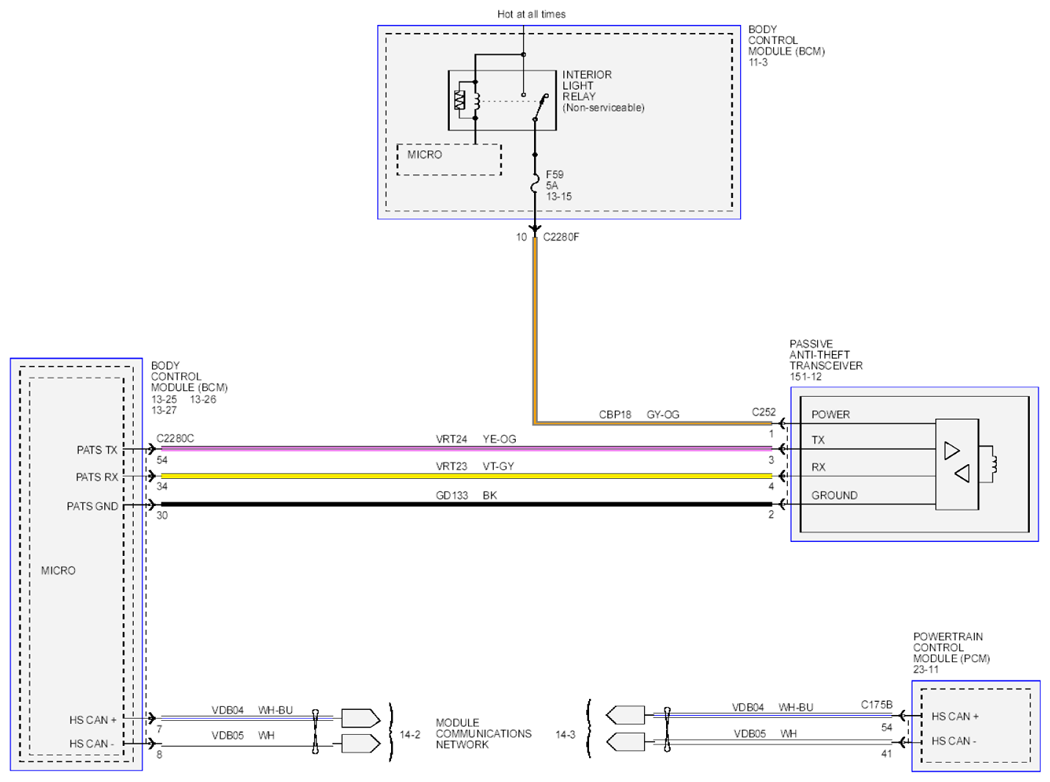

Fig 1: Passive Anti-Theft System Circuit Diagram
G07918838Courtesy of FORD MOTOR CO.
