5 Door

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

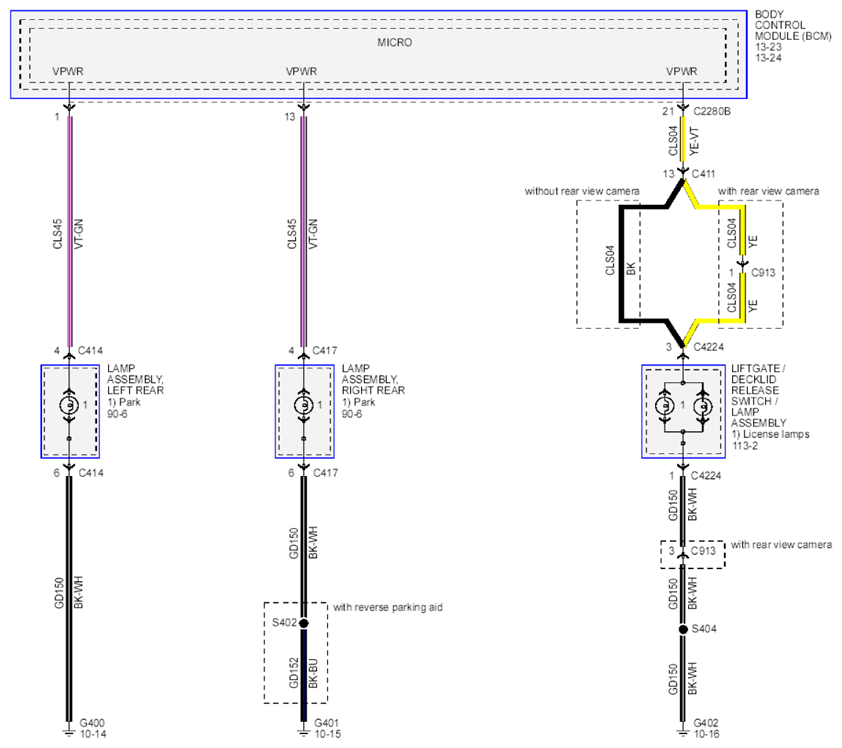

Fig 1: Parking Rear And License Lamps Circuit Diagram - 5 Door
G07918808Courtesy of FORD MOTOR CO.
