With Front Parking Aid And Active Park Assist

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

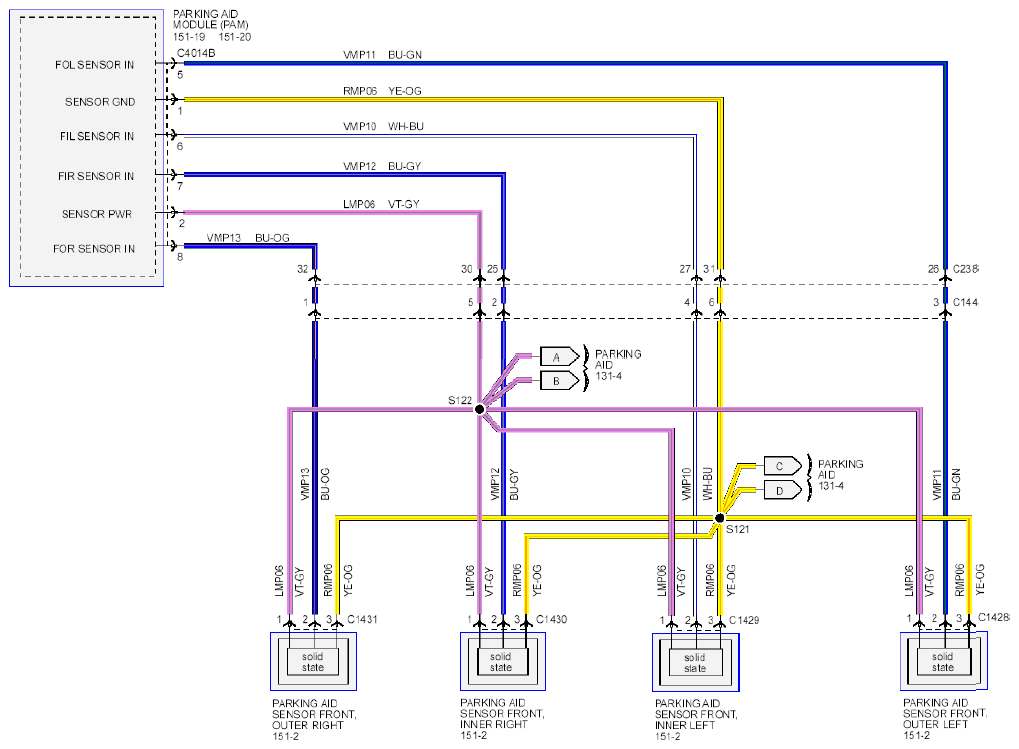

Fig 1: Parking Aid Circuit Diagram - With Front Parking Aid And Active Park Assist (1 Of 2)

Courtesy of FORD MOTOR CO.

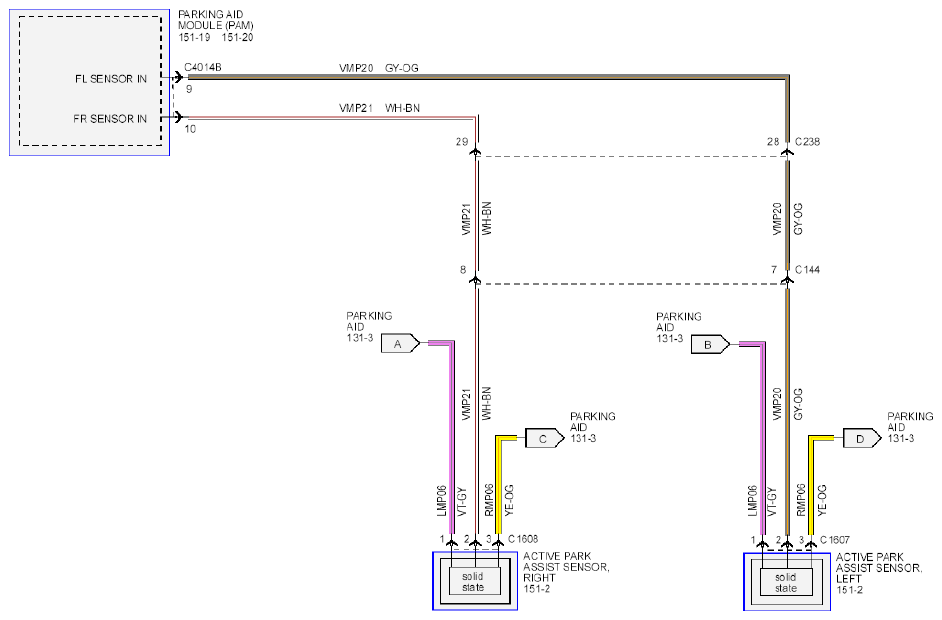

Fig 2: Parking Aid Circuit Diagram - With Front Parking Aid And Active Park Assist (2 Of 2)

Courtesy of FORD MOTOR CO.
