Rear View Camera

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

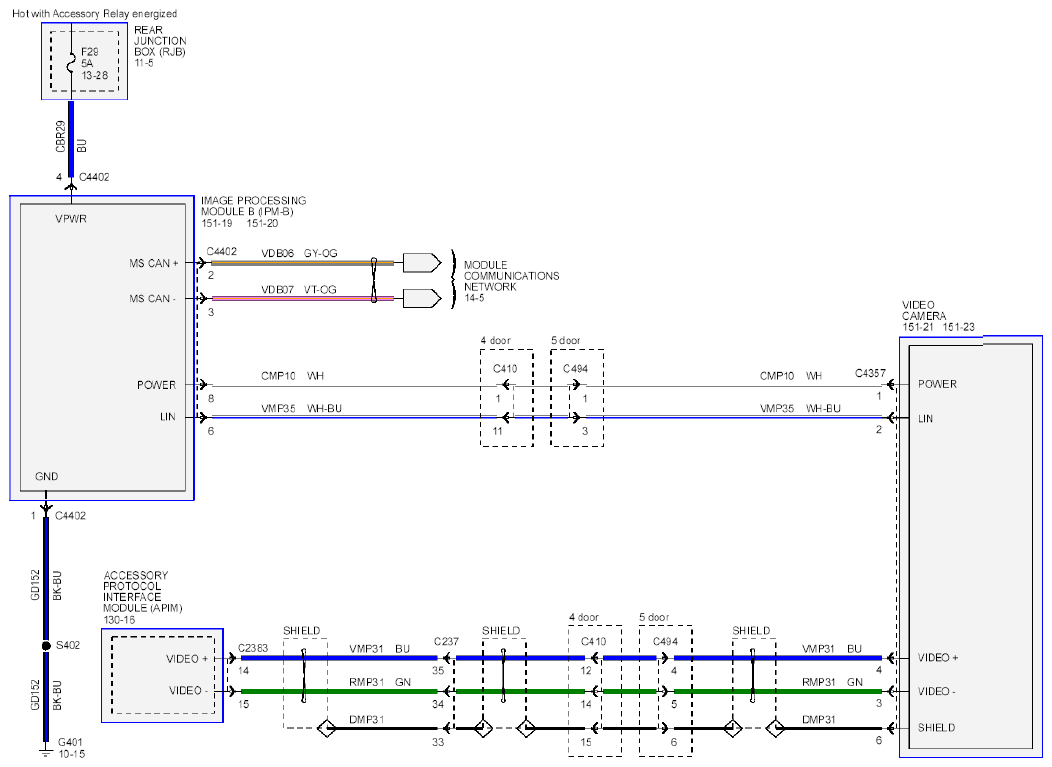

Fig 1: Parking Aid Circuit Diagram - Rear View Camera
G07918188Courtesy of FORD MOTOR CO.
