4 Door

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

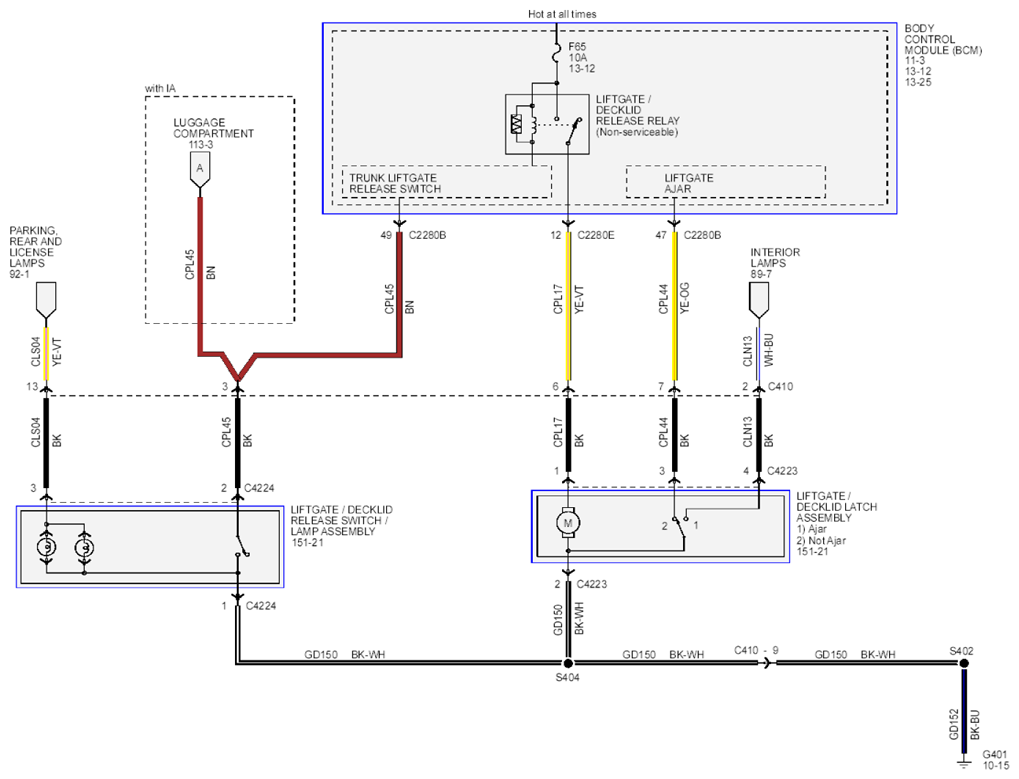

Fig 1: Luggage Compartment Circuit Diagram - 4 Door
G07918841Courtesy of FORD MOTOR CO.
